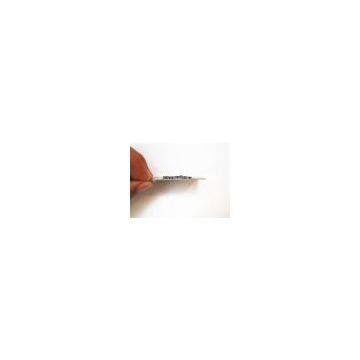

Battery Protection Board for 11.1V Li-ion Battery Pack

No.

Test item (25℃)

Criterion

1

Overcharge protection voltage for single cell

4.275 ± 0.025V

2

Over discharge protection voltage for single cell

2.30 ± 0.08V

3

Over current detect voltage

0.13 ± 0.03V

4

Current consumed in normal operation

30uA

5

Current consumed in sleeping mode

0.1uA

6

Over current protection current during discharging

4A

7

Over current protection current during charging

3A

8

Over current protection time

10mS

9

Short circuit protection time

0.4uS

10

Interior resistance

42mΩ

11

Working temperature

-20 – 55℃

12

Size

28 x 46 x 2.7mm
