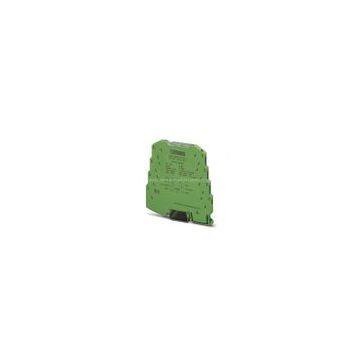

Phoenix Contact Amplifier MINI MCR-SL-I-I
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Phoenix Contact
Place of Origin:
China
Model Number:
MINI MCR-SL-I-I
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Phoenix Contact Amplifier MINI MCR-SL-I-I-SPNegotiableMOQ: 10 Pieces -
Phoenix Contact Switching Power Supply QUINT-DC-UPS/24DC/10NegotiableMOQ: 10 Pieces
-
Phoenix Switching Power Supply QUINT-PS/ 3AC/48DC/20NegotiableMOQ: 10 Pieces
-
Phoenix Contact UPS Switching Power Supply QUINT-DC-UPS/24DC/40NegotiableMOQ: 1 Piece
-
Phoenix Contact Switching Power Supply QUINT-DC-UPS/24DC/20NegotiableMOQ: 10 Pieces
Brand Name
Phoenix Contact
Place of Origin
China
Model Number
MINI MCR-SL-I-I
The 6.2 mm wide standard signal 3-way isolating amplifier MINI MCR-SL-I-I(-SP) is used for electrical isolation, amplification and filtering of standard signals.
On the input and output side, the analog standard signals 0...20 mA or 4...20 mA are available, electrically isolated.
Power (19.2 V DC to 30 V DC) can be supplied through connection terminal blocks on the modules or in conjunction with the DIN rail connector.
Input data
Configurable/programmable No
Current input signal 0 mA ... 20 mA
4 mA ... 20 mA
Max. input current 50 mA
Input resistance current input Approx. 50 Ω
Output data
Configurable/programmable No
Current output signal 0 mA ... 20 mA
4 mA ... 20 mA
Max. output current 28 mA
Load/output load current output < 500 Ω (at 20 mA)
Power supply
Nominal supply voltage 24 V DC
Supply voltage range 19.2 V DC ... 30 V DC (to bridge the supply voltage, the DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, Order No. 2869728) can be used. It can be snapped onto a 35 mm DIN rail according to EN 60715)
Max. current consumption < 20 mA
Power consumption < 450 mW
On the input and output side, the analog standard signals 0...20 mA or 4...20 mA are available, electrically isolated.
Power (19.2 V DC to 30 V DC) can be supplied through connection terminal blocks on the modules or in conjunction with the DIN rail connector.
Input data
Configurable/programmable No
Current input signal 0 mA ... 20 mA
4 mA ... 20 mA
Max. input current 50 mA
Input resistance current input Approx. 50 Ω
Output data
Configurable/programmable No
Current output signal 0 mA ... 20 mA
4 mA ... 20 mA
Max. output current 28 mA
Load/output load current output < 500 Ω (at 20 mA)
Power supply
Nominal supply voltage 24 V DC
Supply voltage range 19.2 V DC ... 30 V DC (to bridge the supply voltage, the DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, Order No. 2869728) can be used. It can be snapped onto a 35 mm DIN rail according to EN 60715)
Max. current consumption < 20 mA
Power consumption < 450 mW
