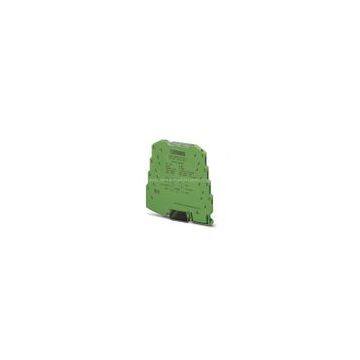

Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Phoenix Contact Amplifier MINI MCR-SL-I-I-SP
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Phoenix Contact
Place of Origin:
China
Model Number:
MINI MCR-SL-I-I-SP
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Phoenix Contact Switching Power Supply QUINT-DC-UPS/24DC/10NegotiableMOQ: 10 Pieces -
Phoenix Switching Power Supply QUINT-PS/ 3AC/48DC/20NegotiableMOQ: 10 Pieces
-
Phoenix Contact UPS Switching Power Supply QUINT-DC-UPS/24DC/40NegotiableMOQ: 1 Piece
-
Phoenix Contact Switching Power Supply QUINT-DC-UPS/24DC/20NegotiableMOQ: 10 Pieces
-
Phoenix Contact Buffer Module QUINT-BUFFER/24DC/20NegotiableMOQ: 10 Pieces
Brand Name
Phoenix Contact
Place of Origin
China
Model Number
MINI MCR-SL-I-I-SP
Input data
Configurable/programmable No
Current input signal 0 mA ... 20 mA
4 mA ... 20 mA
Max. input current 50 mA
Input resistance current input Approx. 50 Ω
Output data
Configurable/programmable No
Current output signal 0 mA ... 20 mA
4 mA ... 20 mA
Max. output current 28 mA
Load/output load current output < 500 Ω (at 20 mA)
Power supply
Nominal supply voltage 24 V DC
Supply voltage range 19.2 V DC ... 30 V DC (to bridge the supply voltage, the DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, Order No. 2869728) can be used. It can be snapped onto a 35 mm DIN rail according to EN 60715)
Max. current consumption < 20 mA
Power consumption < 450 mW
Configurable/programmable No
Current input signal 0 mA ... 20 mA
4 mA ... 20 mA
Max. input current 50 mA
Input resistance current input Approx. 50 Ω
Output data
Configurable/programmable No
Current output signal 0 mA ... 20 mA
4 mA ... 20 mA
Max. output current 28 mA
Load/output load current output < 500 Ω (at 20 mA)
Power supply
Nominal supply voltage 24 V DC
Supply voltage range 19.2 V DC ... 30 V DC (to bridge the supply voltage, the DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, Order No. 2869728) can be used. It can be snapped onto a 35 mm DIN rail according to EN 60715)
Max. current consumption < 20 mA
Power consumption < 450 mW
