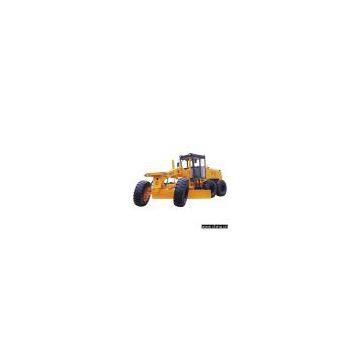

Sell Motor Grader (PQ190II)

Model No.:
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:
Description:Product Name: Motor Grader (PQ190II)Place of Origin: ChinaFeatures: 1) Overall mass: a) Standard model: 15,800kg b) Model with front scrape board and rear ripper: 17,200kg c) Manual gear: i) Model: DEUTZ BF6M1013E ii) Rated power: 145kW iii) Rated rotating speed: 2,300r/min 2) Blade (L x H): 3,965 x 610mm 3) Max. traction: 86kN 4) Travel speed (kW/h): CVT (forward/backward): a) Gear 1: 0 ~ 6.3 b) Gear 2: 0 ~ 9.9 c) Gear 3: 0 ~ 14.9 d) Gear 4: 0 ~ 31.6 5) Turning angle of front wheel: left/right: 45° each 6) Inclination angle of front wheel: left/right: 17° each 7) Swinging angle of front axle: up/down: 15° each 8) Turning angle of hinge joint of machine frame: left/right: 25° each 9) Rotating angle of the blade: 360° 10) Side inclination angle of the blade: left/right: 90° each 11) Contour dimensions (L x W x H): a) Standard model: 8,953 x 2,640 x 3,300mm b) Model with front scrape board and rear ripper: 10,513 x 2,740 x 3,300mm
