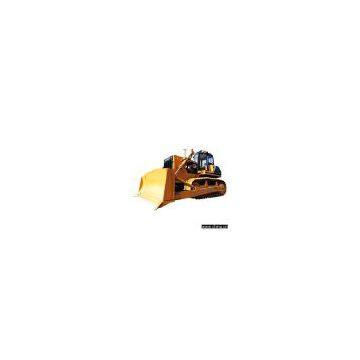

Sell Bulldozer (PD320Y-1)

Model No.:
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:
Description:Features: 1) Engine a) Model: NTA855-C360 Cummins NTA855-C360 b) Type: four-stroke, turbocharged vertical 2) Rated speed: 2,000r/min 3) Number of cylinders - bore x stroke: 6 ~ 139.7 x 152.4mm 4) Air cleaner: dry horizontal type with precleaner 5) Transmission system: a) Torque converter: 3-element, single-stage, single phase b) Transmission: planetary gear, multiple-disc clutch, hydraulic actuated, forced lubrication by gear pump, 3 forward speeds and 3 reverse speeds c) Bevel gear: helical bevel gear, splash lubricated d) Steering clutch: wet, multiple disc clutch, spring loaded, hydraulically actuated e) Steering brake: wet, band brake, operated with hydraulic booster and hydraulic interlocking f) Final drive: spur gear, double reduction, splash lubrication 6) Hydraulic system of work equipment: a) Working pressure: 13.7MPa b) Rated delivery (2,000r/min): 335L/min c) Cylinder, bore x rod x stroke: Φ140 x Φ75 x 1,340mm 7) Work equipment: a) Blade type: semi-U blade angle b) Max. lift above ground: 1,560mm c) Max. drop below ground: 560mm d) Pitch adjustment: 55±2° e) Grade ability: 30° f) Max. tilt: 1,000mm g) Dimensions (L x W x H): 6,880 x 4,130 x 3,640mm
