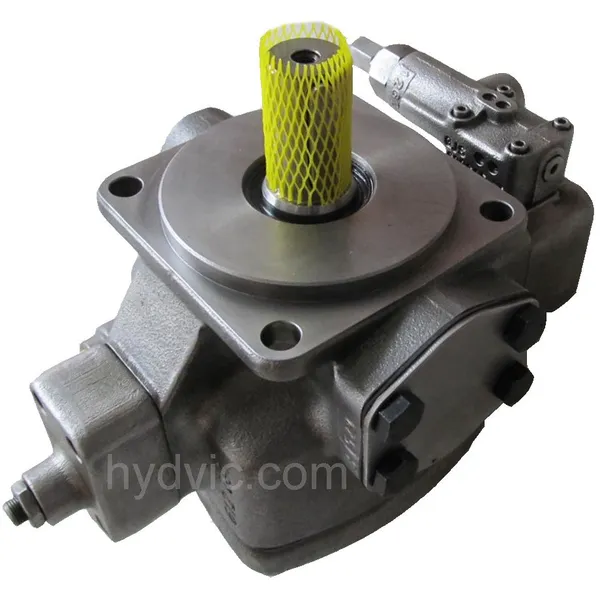

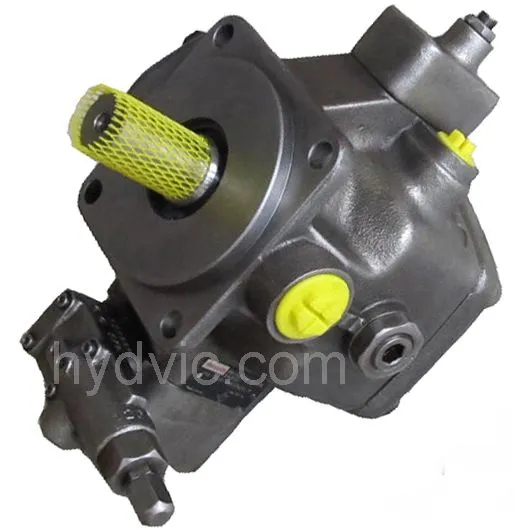

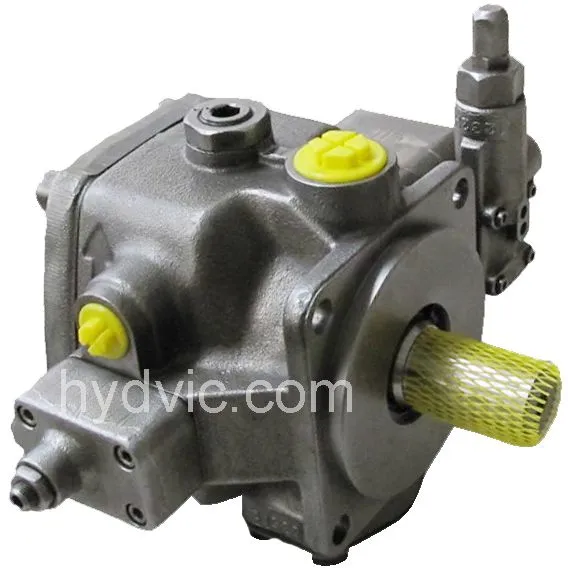

Hydvic Hydraulic Manufacturing Supply PV7 1X / 2X 10 16 20 40 63 100 Variable Hydraulic Rexroth Vane Pump

Hydvic Hydraulic Manufacturing supply PV7 series 1X / 2X 10 16 20 40 63 100 size Hydraulic Variable Rexroth vane pump.

Sizes 14 to 150
Series 1X and 2X
Maximum operating pressure 160 bar
Maximum flow 270 l/min

– Variable displacement
– Low operating noise
– Long service life due to hydrodynamically lubricated plain bearings
– Control of pressure and flow possible
– Low hysteresis
– Very short on and off-stroke times
– Suitable for HETG and HEES media
– Standard single pumps of series PV7 can be flexibly combined to form multiple pumps
– PV7 pumps can additionally be combined with internal and external gear pumps, axial piston and radial piston pumps

PV7-1X/10-14RE01MC0-16 R900580381

PV7-1X/10-14RE01MD0-16 R900504653

PV7-1X/10-20RE01MC0-10 R900534143

PV7-1X/10-20RE01MD0-10 R900906584

PV7-1X/16-20RE01MC0-16 R900580382

PV7-1X/16-20RE01MD0-16 R900509274

PV7-1X/16-30RE01MC0-08 R900533582

PV7-1X/16-30RE01MD0-08 R900560658

PV7-1X/25-30RE01MC0-16 R900580383

PV7-1X/25-30RE01MD0-16 R900509506

PV7-1X/25-45RE01MC0-08 R900534508

PV7-1X/25-45RE01MD0-08 R900568833

PV7-1X/40-45RE01MC0-16 R900580384

PV7-1X/40-45RE37MD0-16 R900593330

PV7-1X/40-71RE01MC0-08 R900535588

PV7-1X/40-71RE37MD0-08 R900539886

PV7-1X/63-71RE01MC0-16 R900506808

PV7-1X/63-71RE07MD0-16 R900519094

PV7-1X/63-94RE01MC0-08 R900560659

PV7-1X/63-94RE07MD0-08 R900574560

PV7-1X/100-118RE01MC0-16 R900506809

PV7-1X/100-118RE07MD0-16 R900532770

PV7-1X/100-150RE07MC0-08 R900561846

PV7-1X/100-150RE07MD0-08 R900915470

PV7-1X/06-10RA01MA0-05 R900561857

PV7-1X/06-10RA01MA0-10 R900563233

PV7-1X/06-14RA01MA0-04 R900919235

PV7-1X/06-14RA01MA0-07 R900919237
