Vertical Vacuum Box Furnace
- 500 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | STD | Place of Origin | China | |
| Model Number | ST-1200VCB |
Product Description

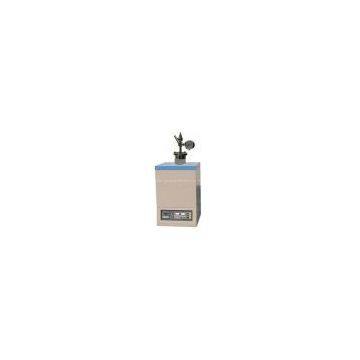

ST-1200VCB Vertical Vacuum Box Furnace is a vacuum chamber furnace with 8" diameter x 7" height vertical quartz liner and stainless steel vacuum flange. It is designed for calcining or sintering ceramic material or annealing semiconductor wafer under vacuum or various gas atmosphere up to 1200oC.
|
Main Specifications |
|
|
Inside chamber Size |
Dia240 x 220mm |
|
Max. Working Temperature |
1200℃ |
|
Standard working temperature |
1100℃ |
|
Temperature Control |
30 segments programmable and PID auto control |
|
Quartz Tube Size |
205 mm O.D x 190 mm I.D x 340 mm Height |
|
Vacuum Flange |
1.Stainless steel with double hi-temperature silicone O-rings ( <300oC) 2.Ball valve and vacuum gauge is installed for immediate use 3. Vacuum pressure up to 10Pa by mechanical pump 4.One porous ceramic disk is included. Must put the refractory disk in front flange to avoid flange over-heated |
|
Heating rate |
0~20 oC / min |
|
Temperature accuracy |
± 2℃ |
|
Heating Element |
High quality Fe-Cr-Al-Mo spiral wire |
|
Working Voltage |
AC 220V 50HZ |
|
Max. Power |
9.5KW |
|
Net Weight |
180kg |
Features:
· High quality Fe-Cr-Al-Mo resistance wire as heating element and can be heated up to 1200oC
·High purity quartz liner : 8" O.D. x 7.5" I.D x 13.2" Height ( 205 OD x 190 ID x 340 H mm )
·Stainless steel vacuum flange with one two ball valves and vacuum gauge is included for immediate use.
· Built in precision digital temperature controller is 30 segments programmable to control heating rate, cooling rate and dwell time
·All accessories are included for immediate use
One pcs refractory disk which shall be put top of inside quartz liner to protect stainless steel from heat damage.Contact Us
