10/100/1000 Base Tx to 1000Base Fx WDM Media Converter

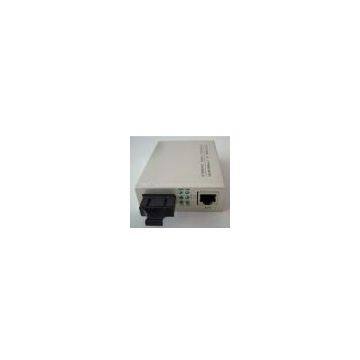

10/100/1000 Base Tx to 1000Base Fx WDM Media Converter photo-1
Negotiable MOQ: 1 Case (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
GWT
Place of Origin:
China
Model Number:
GWT1110ES
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Brand Name GWT
Place of Origin China
Model Number GWT1110ES

Description of goods:

10/100/1000 Base Tx to 1000Base Fx WDM media converter model No. GWT1110ES





Applications:



  GWT1110ES media converter is 10/100/1000Mbps fast Ethernet converter. The converter mediates between a 10/100/1000Base-Tx segment and a 1000Base-FX segment. It is primarily designed for large, higher speed/bandwidth demanding workgroups that require expansion of the Ethernet network. It can extend the conventional 10M Ethernet or 100/1000M Fast Ethernet to 120Km max. via fiber optic cable. It is high-performance, cost effective and flexible solution for a wide range of applications in the field of LAN campus network.



Features:

Auto learning, auto updating, auto stocking and auto transmitting
  Buffer storage band dimension is 256KB, directory meter dimension is 4KB
  Ethernet 10Base-T or 100Base-TX to 100Base-FX with optical fiber cable as medium
  Providing hot plug-draw performance
  Using particular switch chip design with 1M SSRAM buffer,2K MAC address List
  Full duplex and semi-duplex is available with auto negotiation
  Have one RJ-45 port and one fiber port
  Providing TX 1000Mbps,100Mbps,10Mbps auto negotiation,FX working rate is 1.25Gbps
  Good optical FX characteristic and TX characteristic
  Providing long-distance TX and TX characteristic to ensure stability of data transmitting, long lifespan
  Providing RJ-45 NIC and HUB, using NIC to connect with computer
  Working time without any trouble is more than 50 thousand hours



Specifications:

Protocol

IEEE802.3 IEEE802.3u IEEE802.3x

Fiber port

SC/ST

Copper port

RJ-45 Port

Network Cable

2pairs of category 5 UTP (Max:100m)

Fiber optic cable

SMF:8/125,9/125,10/125μm (20/40/80/120Km)

Dimensions(WxDxH)

94*71*26mm (external power)

Input Voltage

AC100V-240V to DC5V

Operational Temperature

0 ~70

Store Temperature

-40 ~80

Humidity

5%~95% no coagulation
