Home > Products > New product > Ballast thermal protector

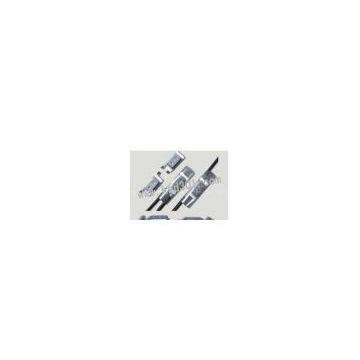

Ballast thermal protector
- 3000000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
Product Details
Brand Name: | HX | Place of Origin: | China | Model Number: | 17AM-K |
Product Description
Product properties:
*Compact structure
*Simultaneously sensing temperature and current
*Quick and accurate action
Scope of application:
- Ballast -Fluorescence light
- Engine -Motor
-Transformer - Laminator
-Rechargeable battery -Solenoid
-Electrical household appliance -PCB board
*Customized service for cables at various specifications is available.
*The riveted terminals can be classified into two types: identical, opposite
* Certifications: UL, CUL, VDE, RoHS
Product specifications:
*Function: single transition: while the temperature reached, it automatically disconnects the power.
*Rated voltage: 22A/125V 10A/250V 20A/16VDC
*Application temperature range: 50-180°C
*Action temperature difference: ±2°C ±3°C ±5°C
*Action times: ≥10000
Rated action temperature table
Temperature specification |
action temperature range, foreign corresponding model |
Temperature specification |
action temperature range, foreign corresponding model |
17AMK 050°C |
50±5.0°C |
17AMK 115°C |
115±5.0°C 17AM 030 |
17AMK 055°C |
55±5.0°C |
17AMK 120°C |
120±5.0°C 17AM 031 |
17AMK 060°C |
60±5.0°C |
17AMK 125°C |
125±5.0°C 17AM 032 |
17AMK 065°C |
65±5.0°C 17AM 020 |
17AMK 130°C |
130±5.0°C 17AM 033 |
17AMK 070°C |
70±5.0°C 17AM 021 |
17AMK 135°C |
135±5.0°C 17AM 034 |
17AMK 075°C |
75±5.0°C 17AM 022 |
17AMK 140°C |
140±5.0°C 17AM 035 |
17AMK 080°C |
80±5.0°C 17AM 023 |
17AMK 145°C |
145±5.0°C 17AM 036 |
17AMK 085°C |
85±5.0°C 17AM 024 |
17AMK 150°C |
150±5.0°C 17AM 037 |
17AMK 090°C |
90±5.0°C 17AM 025 |
17AMK 155°C |
155±5.0°C 17AM 038 |
17AMK 095°C |
95±5.0°C 17AM 026 |
17AMK 160°C |
160±5.0°C 17AM 039 |
17AMK 100°C |
100±5.0°C 17AM 027 |
17AMK 165°C |
165±5.0°C |
17AMK 105°C |
105±5.0°C 17AM 028 |
17AMK 170°C |
170±5.0°C |
17AMK 110°C |
110±5.0°C 17AM 029 |
17AMK 175°C |
175±5.0°C |
|
|
17AMK 180°C |
180±5.0°C |
Passed certifications(license): CQC, UL, VDE
