China Lead Manufacturer of Impact Crusher

China Lead Manufacturer of Impact Crusher

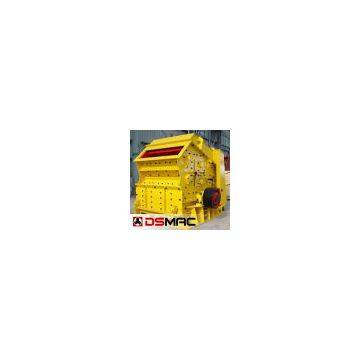

PF-1214V Impact Crusher
Feeding Hole Dimension(mm): 2040*1315
Maximum Feedstock Granularity(mm):700
Rotor Dimension(mm*mm): Φ1512*2000
Handling Ability(t/h): 350~450
Power(kw): 400/450
Overall Dimension(mm*mm*mm): 3849*3422*3649

DSMAC Impact Crusher
DSMAC has introduced advanced technology from home to abroad successfully design and manufacture the up-to-date impact crusher in line with the specific industrial and mining conditions in China. The impact crusher is used for crushing various rocks, constructing railway, expressway roadbed and dam area of power station, producing artificial dinas for the building industry, etc. It is used to crush coarse, medium and fine stones whose compressive strength is no more than 300MPa and Moh's hardness is lower than the 8th degree, such as limestone, basalt, granite, concrete, slag, cement block, etc.

DSMAC Impact Crusher Features
The impact crusher is designed with cubic shape and features convenient operation and maintenance, high efficiency and energy saving. It can achieve selective crushing.
1. Impact crusher is featured with high crushing ratio, large feed hole, adjustable discharge hole and little powdery finished product.
2. Crushing is conducted with multiple crushing cavities. The impact crusher is particularly suitable for hard rock crushing.
3. The rotor is designed with the most advanced finite-element analysis technology for local reinforcement.
4. The high-chromium plate hammer is manufactured with crystal alloy which results in its sound impact resistance and wear resistance.
5. Wedge-shaped clamp is used to keep crusher rotor and plate hammer fixed.
6. The space between impact plate and plate hammer is convenient to adjust. The finished product is cubic-shaped.
7. Impact crusher is small in size, occupying very little space.
8. Designed with a hydraulic opening device, easy and convenient to operate, install and maintain.
9. The new wear resistant materials enable the plate hammer, impact plate and lining plate to have a longer service life.

DSMAC Impact Crusher Type
PF-1007V , PF-1010V , PF1210V , PF-1214V , PF-1315V , PF-1320V , PF-1416V , PF-1520V , PF-1620V , PF-1820V , PF-2020V

If you want to get the price, please send us the detailed materials information, such as the hardness of raw materials,feeding size, you required output size,capacity and other special requirement.Our engineer will choose the optimum type and our saleman will send you the resonable price.
