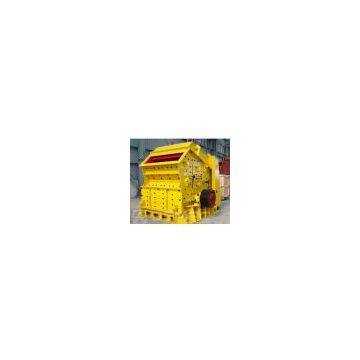

Impact Crusher

Impact Crusher

PF-2024V Impact Crusher Key Specification
Feeding Hole Dimension (mm): 1800*2430
Maximum Feedstock Granularity (mm):1200
Rotor Dimension (mm*mm): Φ2000*2400
Handling Ability (t/h): 800~1100
Power (kw): 1120
Overall Dimension (mm*mm*mm): 4800*4740*4180

Impact Crusher Introduction
The new impact crusher can be used for intermediate and fine crushing in the second and third grade. The impact crusher is designed with cubic shape and features convenient operation and maintenance, high efficiency and energy saving. It can achieve selective crushing.

Impact Crusher Features
1. High crushing ratio, large feed hole, adjustable discharge hole and little powdery finished product.
2. Multiple crushing cavities; suitable for hard rock crushing.
3. The rotor is designed with the most advanced finite-element analysis technology for local reinforcement.
4. The high-chromium plate hammer is manufactured with crystal alloy which results in its sound impact resistance and wear resistance.
5. The space between impact plate and plate hammer is convenient to adjust. The finished product is cubic-shaped.
6. Impact crusher is small in size, occupying very little space.
7. Hydraulic opening device, easy and convenient to operate, install and maintain.
8. The new wear resistant materials enable the plate hammer, impact plate and lining plate to have a longer service life.

Impact crusher Type
PF-1007V,PF-1010V,PF-1210V,PF-1214V,PF-1315V,PF-1320V,PF-1416V,PF-1520V,PF1620V,PF-1820V,PF-2024V
