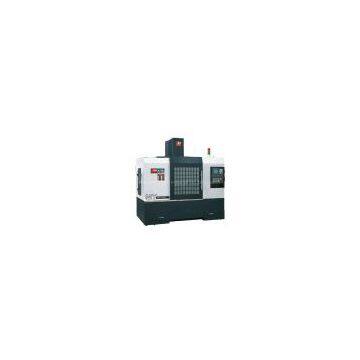

Vertical Machining Center Series MY-MV850 A/B
Negotiable
/ Set
1 Set(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | MY-MV850 A/B |
Product Description
|
project
|
MOOYE-MV850A
|
MOOYE-MV850B
|
|
area of work
|
1050mm×500mm
|
1000mm×500mm
|
|
The maximum weight bearing
|
600kg
|
450kg
|
|
Workbench T shape slot
|
3×18mm
|
3×18mm
|
|
Machine trip
|
800×500×500mm
|
800×500×500mm
|
|
Fast moving speedX/Y/Z
|
10/10/10m/min
|
24/24/20m/min
|
|
feed speedX/Y/Z
|
6m/min
|
1-10m/min
|
|
driving powerX/Y/Z
|
2.1kw
|
2kw
|
|
Spindle power
|
7.5kw
|
9kw
|
|
Innenkegel
|
BT40
|
BT40
|
|
the distance of Spindle face from end
|
150~650mm
|
120~670mm
|
|
speed of mainshaft
|
8000rpm
|
8000rpm
|
|
Largest cutter
|
Ф63
|
Ф85
|
|
largest cutterr weight
|
8Kg
|
8Kg
|
|
maxt tool length
|
250mm
|
250mm
|
|
Change the tools completion time
|
5sec
|
3sec
|
|
positioning [setting] accuracy
|
±0.005mm
|
±0.005mm
|
|
repeat location accuracy
|
±0.005mm
|
±0.003mm
|
|
air pressure
|
0.4~0.7Mpa
|
0.4~0.7Mpa
|
|
machine heigh
|
2480mm
|
22KVA
|
|
Covers an area of
|
2560mm×2120mm
|
2480mm
|
|
Power supply capacity
|
22KVA
|
2560mm×2120mm
|
|
Voltage
|
380V
|
380V
|
|
machine weight
|
5500Kg
|
6000Kg
|
