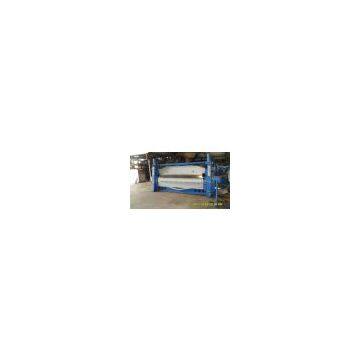

CNC Hydraulic Folding Machine/ Plate Folding Machine
US$ 3000 - 3000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Besco
Place of Origin:
China
Model Number:
W62Y
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
CNC 3 Roller Plate Bending Machine/ 3 Roller Plate Rolling MachineUS$ 3000 - 3000MOQ: 1 Set -
Power Press Machine/punching Machine/power PressUS$ 500 - 500MOQ: 1 Set
-
Plate Bending Machine,plate Rolling Machine,rolling Pipe Bending MachineUS$ 3000 - 3000MOQ: 1 Set
-
Sprial Tube Forming Machine,tube Forming Machine,sprial Tube FormingUS$ 5000 - 5000MOQ: 1 Set
-
J23 Power Press, Punching Machine, Punching Press MachineUS$ 500 - 500MOQ: 1 Set
Brand Name
Besco
Place of Origin
China
Model Number
W62Y
1, The CNC hydraulic folding machine/ plate folding machine/ plate folding machine is full welded-steel plate construction;
2, The CNC hydraulic folding machine/ plate folding machine is easy and simple to operate;
3, The CNC hydraulic folding machine/ plate folding machines pass ISO9001:2008;
4, The CNC hydraulic folding machine/ plate folding machine is low price and high quality;
5. The CNC hydraulic folding machine/ plate folding machines have good look outline.
CNC hydraulic folding machine/ plate folding machine is main used to plate bending work.
The machine tool named hydraulic folding machine adopts welded steel plate construction and eliminate internal stress by heat treatment, assuring the hydraulic folding machine high strength, good rigidity, small deformation, easy operation and high endurance.
1. Hydraulically operated bending and clamping beam of CNC hydraulic folding machine/ plate folding machine for efficient heavy duty operation
2. The CNC hydraulic folding machine/ plate folding machine has high structural rigidity from heavy plate steel box construction with continuous welded seams
3. Bending beam of CNC hydraulic folding machine/ plate folding machine powered by dual hydraulic cylinders
4. The CNC hydraulic folding machine/ plate folding machine is fully integrated and enclosed electric / hydraulic system with large oil reservoir to maintain low oil temperature
5. The CNC hydraulic folding machine/ plate folding machine has high load capacity dual spherical plane bearings utilized at bending beam pivots and over-centre clamp bearings.
6. The CNC hydraulic folding machine/ plate folding machine has precise electric / hydraulic controls with manual inching of bending beam
7. Utilization of easy to set micro-switches on the CNC hydraulic folding machine/ plate folding machine provides accurate & infinitely adjustable angle control to the folding apron
8. The CNC hydraulic folding machine/ plate folding machine has comprehensive equipment protection from electric and hydraulic overload systems
9. Hydraulic System of the CNC hydraulic folding machine/ plate folding machine: high quality component ensures reliable performance for years of continuous operation; powerful direct coupled hydraulic pump and motor provides efficient, rapid operation; unique electric / hydraulic control ensures safe and simple operation
10. Section clampers of the CNC hydraulic folding machine/ plate folding machine is suitable for producing disk, box etc.
11. Open height of the CNC hydraulic folding machine/ plate folding machine is up to 110mm
12. Servo motor drives scotch to position back gauge of the CNC hydraulic folding machine/ plate folding machine is precisely and rapidly.
13. CNC control on the CNC hydraulic folding machine/ plate folding machine for bending angle and back gauge (double axis)
The CNC hydraulic folding machine/ plate folding machine can be used for the material up to 5mm thickness from 1320mm to 3200mm width.
Parameters of CNC hydraulic folding machine/ plate folding machin
| Model | W62K-3 x 2500 | W62K-3 x 3100 | W62K-4 x 2500 | W62K-4 x 310C | ||
| Folding thickness | mm | 0.5 ~ 3 | 0.5 ~ 3 | 0.5 ~ 4 | 0.5 ~ 4 | |
| Folding length | mm | 2500 | 3100 | 2500 | 3100 | |
| Evolving angle of the bending beam | ° | 0° - 125° | 0° - 125° | 0° - 125° | 0° - 125° | |
| Max. lift of the upper beam | mm | 110 | 110 | 110 | 110 | |
| Main motor | Kw | 5.5 | 5.5 | 5.5 | 5.5 | |
| Dimension | L. | mm | 3700 | 4400 | 3750 | 4450 |
| W. | mm | 1640 | 1640 | 1640 | 1640 | |
| H. | mm | 1650 | 1650 | 1650 | 1650 | |
| Weight | Kg | 3500 | 4200 | 3600 | 4200 |
