Plate Bending Machine,plate Rolling Machine,rolling Pipe Bending Machine

Plate Bending Machine,plate Rolling Machine,rolling Pipe Bending Machine thumbnail-1
Plate Bending Machine,plate Rolling Machine,rolling Pipe Bending Machine thumbnail-2
Plate Bending Machine,plate Rolling Machine,rolling Pipe Bending Machine thumbnail-3
Plate Bending Machine,plate Rolling Machine,rolling Pipe Bending Machine photo-1

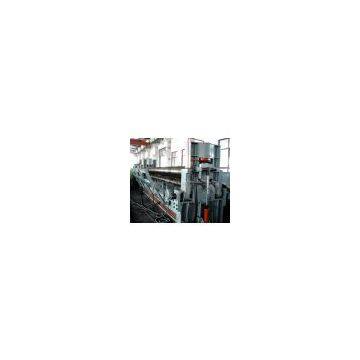

Plate Bending Machine,plate Rolling Machine,rolling Pipe Bending Machine photo-2

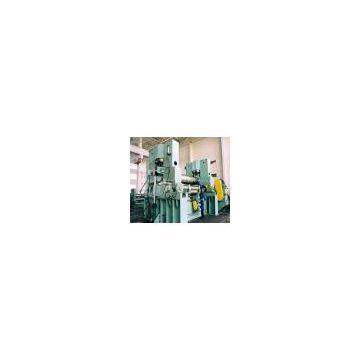

Plate Bending Machine,plate Rolling Machine,rolling Pipe Bending Machine photo-3
US$ 3000 - 3000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Besco
Place of Origin:
China
Model Number:
W11S
Contact Supplier Request Quote Chat Now
Besco Machinery Industry Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Besco
Place of Origin China
Model Number W11S
1.W11S plate bending machine,plate rolling machine,rolling pipe bending machine
e’s upper roller can move vertically or horizontally and is hydraulic driven. The W11S three roller bending machines are driven by worm and gear.


2.W11S plate bending machine,plate rolling machine,rolling pipe bending machine’s lower rollers are driving rollers and the upper roller is the driven roller.


3.The surface of the rollers of the W11S three roller plate bending machine is polished.


4.Pre-bending function of the plate bending machine,plate rolling machine,rolling pipe bending machine is available.


5.The W11S plate bending machine,plate rolling machine,rolling pipe bending machine
 is PLC controlled and there is a LCD to show all the roller position.


6.The W11S three roller plate bending machine equipped with movable control panel, the W11S three roller plate bending machine can be controlled at any position around it.


7.The reversal side of the W11S plate bending machine,plate rolling machine,rolling pipe bending machine
 is hydraulic driven.


8.The W11S plate bending machine,plate rolling machine,rolling pipe bending machine
 is designed with supporting rollers under the lower rollers, thus helping improve the bending accuracy.


9.Optional components and devices like conical device and side and top plate
Item Max dia of coil (mm) Max thickness (mm) Max coil width (mm) upper roller pressure (tons) Dia. of upper roller (mm) Dia. of lower roller (mm) centre distance of lower rollers (mm) main power (kw) hydraulic power (kw)
W11S-6*1500 6 4.5 1500 25 175 125 160 3 2.2
W11S-6*2500 6 4.5 2500 37 235 135 180 4 2.2
W11S-8*2500 8 6 2500 45 245 145 200 7.5 4
W11S-12*2000 12 9 2000 65 255 150 245 7.5 4
W11S-12*3000 12 9 3000 100 320 180 300 15 5.5
W11S-16*2000 16 12 2000 75 300 165 270 11 5.5
W11S-16*3200 16 12 3200 130 380 200 330 22 7.5
W11S-20*2000 20 16 2000 100 320 180 300 15 5.5
W11S-25*2500 25 20 2500 230 410 235 380 30 11
W11S-30*3000 30 25 3000 320 480 260 420 37 15
W11S-30*3200 30 25 3200 380 510 275 460 45 15
W11S-40*2000 40 32 2000 320 480 260 420 37 22
W11S-40*2500 40 32 2500 380 520 290 500 55 22
W11S-40*4000 40 32 4000 540 660 360 650 75 22
W11S-50*4000 50 40 4000 690 780 440 820 90 22
W11S-60*3000 60 50 3000 850 710 420 780 90 22
W11S-60*5000 60 50 5000 1050 940 520 1000 110 30
