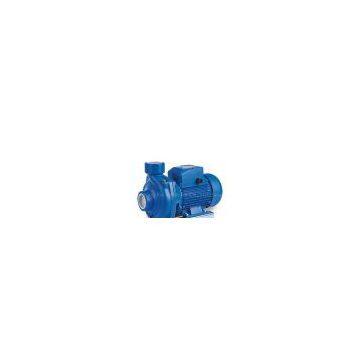

DTM Series centrifugal Water Pump 1hp 1.5hp 2hp
- 20000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Brand Name: | JRF | Place of Origin: | China | Model Number: | dtm |
Product Description
Features
DTM pump are specifically designed for industrial and agricultural use. Its voluted impeller makes it able to pump water that is even fairly dirty. High delivery rates under continuous or heavy duty, making them advantageous for rain and gravity irrigation, for pumping water from lakes, river, and wells and for a wide variety of industrial uses where high delivery rates must be achieved at low to average heads.
With a single centrifugal impeller cantilevered on the motor shaft directly, the DTM pump have a compact size, extremely reliable, very simple to use and almost maintenance-free.
Specifications
Model |
Input Power |
Current (A) |
Capacitor (μF) |
H.max |
Q.max |
Size |
S.Head |
|
kW |
HP |
|||||||
DTm12 |
0.55 |
0.75 |
3.8 |
16 |
12 |
200 |
1.5"X1.5" |
8 |
DTm16 |
0.75 |
1 |
4.8 |
20 |
18.5 |
200 |
1.5"X1.5" |
8 |
DTm18 |
1.1 |
1.5 |
6.6 |
30 |
18 |
420 |
2"X2" |
8 |
DTm20 |
1.5 |
2 |
8.8 |
40 |
20 |
480 |
2"X2" |
8 |
