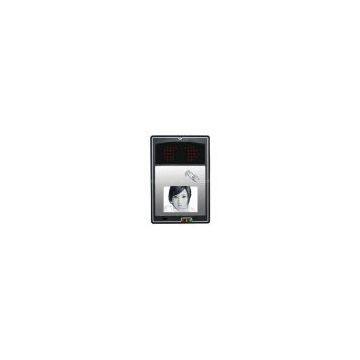

ZKS-F20

Parameters
Processor: TI DM6446 CPU 594 MHz
Storage: SD card 2G (standard), 8G, 16G, 32G available
Network interface: Ethernet 100M base-T
Serial Interface: RS485
User Capacity: 800 users by 1:N, every user can register 10 different faces; Unlimited user by 1:1
Camera sensor Type: CCD
Camera resolution: 640*480 pixels
Card reader: Proximity card reader module embedded
Display: 3.0 TFT touch color LCD
Power Supply: DC12V
Current: 800mA
Power Consumption: 9.6W
Communications: TCP/IP and USB downloading
Show: Time, ID number, Name, Picture
Language: English and other customized languages
Time & Attendance mode: Face, password, card, face + password and face + card
Size: 110mm (W) x 145mm (H) x 65mm (D)
Weight: 3.5kg
Valid range of user's height: 1.45 to 1.95m
Installation: 1.1 to 1.25m from the ground (adjustable based on user's average height)
Valid distance between terminal and user: 0.3 to 0.8m
Warranty of period: 12 months
Applications: Office / hotel / hospital / bank / prison / police station etc

Access Controller Specification
Communication Interface: RS485, WEIGAND 26, WEIGAND 34
Power Supply: DC12V
Current: 300mA
Power Consumption: 3.6W
Operation Temperature: -20℃~60℃
