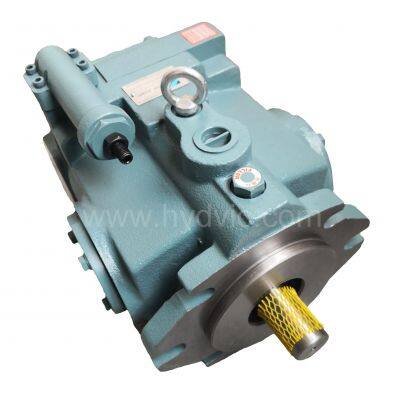

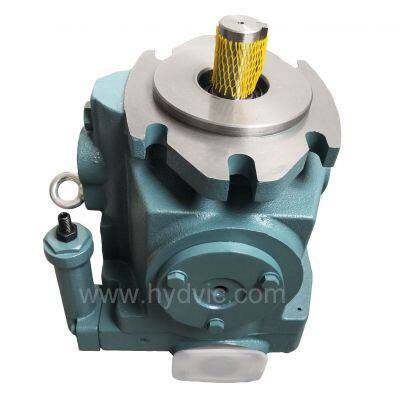

V15, V18, V23, V25, V38, V42, V50, V70, V15-V15, V23-V23, V15-V38, V38-V38, V15-V70 Daikin Piston Pump

Daikin V Axial Variable Piston Pump V15, V18, V23, V25, V38, V42, V50, V70, V15-V15, V23-V23, V15-V38, V38-V38, V15-V70
V38-V70

Feature:
1. Combining special internal designs and strict engineering disciplines has reduced noise level to new lows in whole pressure zones.
2. Depending on variety of application needs multiple optional unique control methods are available. It does not only reduce a number of unnecessary hoses, pipes and control valves but also increase efficiency and save horsepower and cost.
3. Less capacity reservoirs can be selected and applied because of performances of low pressure loss and less head generation.
4. Wide application ranges: it is very suitable for machine tools, plastic injection molding machines, forging machines and other industrial machines etc..
5. Mounting flanges are made to SAE A or B 2-bolt (V15, 18, 23, 38 types) and SAE-C 2 & 4-bolt (V50, V70 types).

Cautions  for selecting  hydraulic oil:

 * In case hydraulic pressure is under 6.9MPa (70 krf/cm2), use hydraulic oil which is corresponding  to ISO VG32-60 in viscosity     grade  or wear resisting  hydraulic oil.

* In case hydraulic pressure is over 6.9MPa (70kgf//cm2), use wear resisting hydraulic oil which is corresponding to ISO VG32-68 in viscosity grade.

* In case the following oils are used, Fatty acid ester family Water+ Glycol family.Water-in-oil emulsion.
