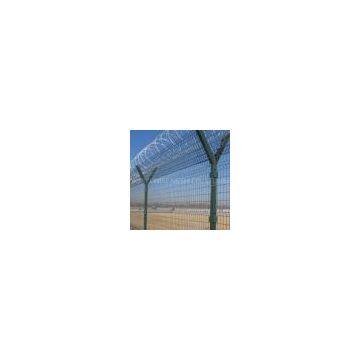

High Quality Wire Mesh Fence Panel

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

SYJ

Place of Origin

China

Product Description

Certification:ISO9001

◆ Unique Structural Design
One time forming large steel post without any welds & high tensile steel welded panel without any connectors which composes a perfect combination.
The solar lamp post for your choice
◆ High Security
Security concerns of structural design could greatly reduce artificial disassembly
The security design reduces the dismantle possibility.
Steel post, higher tensile strength welded panel, and the reinforcing slot to increase the overall flatness
Integrated design of security accessories system (post crank arm, barbed wire and bayonet cage) and effectively resist and warning outsiders climbing
◆ Long Lifetime
The coating technology of BEIJING SYJ guarantees a long lifetime.
◆ Fast Installation
To adapt to uneven terrain, different angle installation
Easy to master, convenient and reduce the cost

Main Component

	◆ Steel wire diameter Ф4.5, Ф5mm. ◆ Welding wire mesh has 1030-2230mm at different heights ◆ vertical direction has 30mm agnail and visual needs reverse (agnail can be placed on top or bottom) ◆ Mesh size has 50100, 55200, 60200, 65200, 75*200mm
PANEL

	◆ Using high strength one time forming no weld steel post, covering with plastic anti pull cap. ◆ Post profile dimension：701001.2mm ◆ Products without any connectors, and use of pull-type buckle connections ◆ Post height has 1200mm-3000mm
POST

Standard product specifications

Installation Height (mm)	Post Spacing (mm)	Panel				Post
Installation Height (mm)	Post Spacing (mm)	Length (mm)	Width (mm)	Grid Size (mm)	Wire Dia (mm)	Length (mm)	Dia O.D. (mm)
1530	2560	1430	2500	50*200	5+5	1850	701001.2
1730	2560	1630	2500	50*200	5+5	2050	701001.2
1930	2560	1830	2500	50*200	5+5	2250	701001.2
2130	2560	2030	2500	50*200	5+5	2450	701001.2
