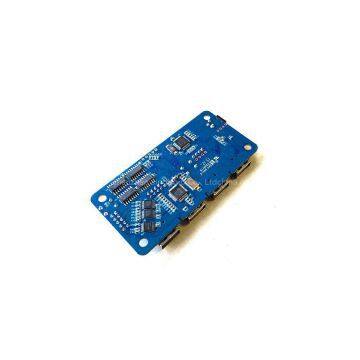

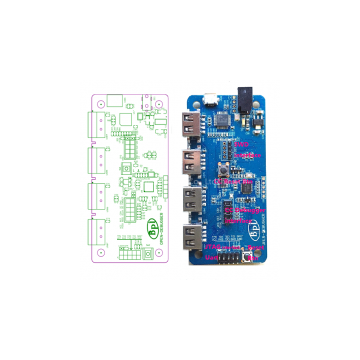

Introduction:
Open Debugger is a set of programming tools in the development of STM series of microcontrollers, TI CC1x, 2x, TI CC3x series SOC, when STC Series MCU can be programmed quickly and easily debug, debugging programmer does not have to do something different series of chips switching plug tedious work. In addition, it also integrates a USB to serial port, which is a common interface for embedded development. It is also one of USB2.0 HUB, making it easy to extend to other USB tools. With it, no longer need to face a bunch of different writer, complicated mess of wiring, USB port deficiencies
Support Objects
Programming and debugging of the following 8051-based TI SoCs：
CC1110，CC1111
CC2430，CC2431
CC2510，CC2511
CC2530，CC2531，CC2533
CC2540，CC2541
CC2543，CC2544，CC2545
To SmartRF Studio control same apparatus. In addition, you can also control the following transceiver SmartRF：
CC1120，CC1121，CC1125，CC1175
CC1100，CC1101，CC110L，CC113L，CC115L
CC2500，CC2520
It can also be used to program the PurePath wireless devices：
CC8520，CC8521
CC8530，CC8531
Programming and debugging mainstream ARM7 \\ 9 \\ 11, Cortex-A5 \\ A8 \\ A9 \\ M0 \\ M1 \\ M3 \\ M4
Supported MCU manufacturers：
ST，Freecale，Nuvoton，NXP，TI，Cypress，Atmel，Analog，Fujitsu，Toshiba，
Energy Micro...。
Speeds up the programming and debugging functions 4Mhz: Write Flash Rom, EEPROM, ARF, and support for full speed, stepping, breakpoints
JTAG programming and debugging interface for all supported kernel。
STC series microcontroller programming and debugging output port for printing information.
