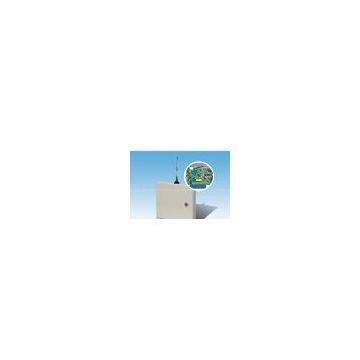

CDMA Wireless Communication Extension Module DA-2300F

Specification:

★Power Supply:
input: AC 220V or 110V, ±10%,50Hz
output : DC14V/500mA
★Static current: <100mA
★Operating current: <300mA
★Installation: hanging
★Voice record: 20s at the most, save from power down.
★GSM monitoring:Indicator show whether in network service.
★GSM frequency:E-GSM/GPRS 860-893MHz
★Standards : EN 50131-1, EN 50136-2-1, 2-3, 2-4
★Security rate : 2 (Lower than the moderate risk)
★Environment rank: Generally room Level II(-10 to 40℃)
★Electrical security:EN 60950
★Electromagnetic compatibility: EN 301489-1, EN 301489-7, EN 55022, EN 50130-4
★Radio properties : ETSI EN 301419-1, EN 301511
★Weight:about 1.65kg
★Size(L×W×H): 210×50×190mm

Function:

★DA-2300F general-type CDMA communication module,can access all information that alarm unit transmit to center monitoring station, through alarm unit telephone line port, to transmit them to center by CDMA network;
★N.O, N.C, and 12V voltage signal to trigger three expand zones;
★SMS remote relay control, site monitoring, voice or SMS alarm through GSM network;
★Be compatible with ADEMCO 4+2 and ADEMCO Contact ID center monitoring station protocol;
★Easy programming and flexible setting, parameters can be set by SMS or computer-use software serial port;
★Telephone line testing ability; can shift freely between telephone line communication and GSM/CDMA communication.
