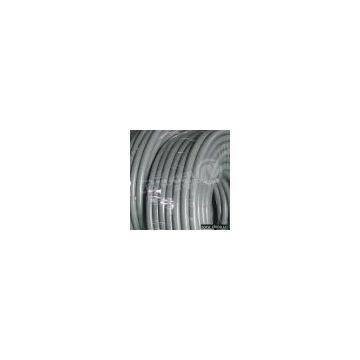

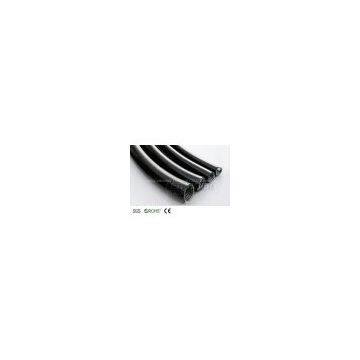

PVC coated metal flexible conduit

Product code: LNE-JSB
Product material: (inner layer) adopting galvanized steel band with special insulation treatment (outer layer) adopting PVC raw material (anti-UV, anti-aging)
Color: Black and gray
Working temperature: -10℃~+80℃, instantaneously can be +100℃
Property:
1. The flexible pipes have extremely good waterproof, insulating and pull resistance.
2. The surface is made of PVC material, which is added with fire retarding agent.
3. The structure is buckle structure, which enhances the pull resistance and is not liable to crack or deform.
4. Good bending performance. The inner smoothness makes the entry of wires very easy.

Application: Used for wire protection at railways, engines, traffic system engineering, air-conditioners, various machineries, automatic controlling equipment, power plants, chemical industries, power distribution system, communication system, vessels, mansions, factory buildings as well as the outdoors’ exposed locations.

Usage: protecting wires/cables and provide insulation,waterproofong as well as beautiful outlook of the wiring. How to use: Put the wires/cables through the pipes before fitting correspondent type of LNE-DPJ joints

Item No.	Specifications	Outer diameter and tolerance	Natural curve	Max. axial pull	Packaging unit (meter)
Metric	G system
LNE-SL-M-6	Φ6	3/16″	9.00±0.25	40	335	100
LNE-SL-M-8	Φ8	5/16″	11.8±0.30	45	470	100
LNE-SL-M-10	Φ10	1/4″	14.5±0.30	55	590	100
LNE-SL-M-12	Φ12	-	16.5±0.35	60	710	100
LNE-SL-M-13	Φ13	3/8″	17.5±0.35	65	765	100
LNE-SL-M-15	Φ15	-	20.2±0.35	80	885	50
LNE-SL-M-16	Φ16	1/2″	21.2±0.35	85	940	50
LNE-SL-M-19	Φ19	-	24.5±0.40	95	1120	50
LNE-SL-M-20	Φ20	3/4″	25.5±0.40	100	1180	50
LNE-SL-M-25	Φ25	1″	31.7±0.45	120	1450	25
LNE-SL-M-32	Φ32	1 1/4″	39.6±0.50	150	1885	25
LNE-SL-M-38	Φ38	1 1/2″	46.6±0.60	180	2240	20
LNE-SL-M-51	Φ51	2″	59.5±1.00	220	3000	10
