Help CenterSell Radial Drilling Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1997
Total Employees:
101 - 200 People
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Model No.:z3040*20
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:

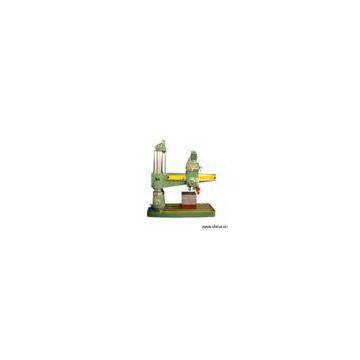

Description:Product Name: Radial Drilling MachineModel Number: z3040*20Place of Origin: ChinaFeatures: 1) Max drilling diameter: 40mm 2) Distance from spindle axis to column: 2,050mm (max.), 450mm (min.) 3) Distance from spindle nose to working surface of base plate: 1,450mm (max.), 350mm (min.) 4) Taper of spindle (mores no): 5# 5) Spindle travel: 315mm 6) Spindle speed range: 50 - 2,350rpm 7) Range of spindle feeds: 0.04 ~ 3.2mm/r 8) Horizontal travel of spindle head: 1,650mm 9) Power of main drive motor: 4kW 10) Overall dimensions of machine (L x W x H): 2900 x1170 x 3048(mm) 11) Net weight: 4,900kg 12) Used to drill, expand, ream, groove and tap middle and large parts and even to bore holes if equipped with necessary devices
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:
Description:Product Name: Radial Drilling MachineModel Number: z3040*20Place of Origin: ChinaFeatures: 1) Max drilling diameter: 40mm 2) Distance from spindle axis to column: 2,050mm (max.), 450mm (min.) 3) Distance from spindle nose to working surface of base plate: 1,450mm (max.), 350mm (min.) 4) Taper of spindle (mores no): 5# 5) Spindle travel: 315mm 6) Spindle speed range: 50 - 2,350rpm 7) Range of spindle feeds: 0.04 ~ 3.2mm/r 8) Horizontal travel of spindle head: 1,650mm 9) Power of main drive motor: 4kW 10) Overall dimensions of machine (L x W x H): 2900 x1170 x 3048(mm) 11) Net weight: 4,900kg 12) Used to drill, expand, ream, groove and tap middle and large parts and even to bore holes if equipped with necessary devices
