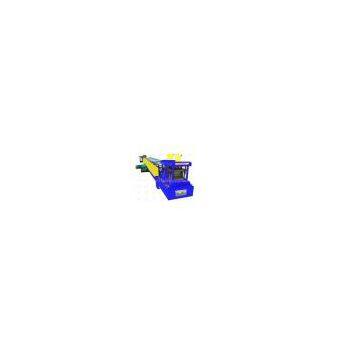

Help CenterTwo -wave Auto Highway Guardrail Cold Roll Forming Machine
Related Products
-
Roll Forming MachineNegotiableMOQ: 1 Piece -
Highway Guardrail Cold Roll Forming MachineNegotiableMOQ: 1 Piece
-
Highway Guardrail Cold Roll Forming MachineNegotiableMOQ: 1 Piece
-
Highway Protection Plate Roll Forming MachineNegotiableMOQ: 1 Piece
-
Highway Guardrail Cold Roll Forming MachineNegotiableMOQ: 1 Piece
Detailed Product Description
2.Working speed:about 15m/min
3.Main power:15KW
4.Forming steps :17
5.Roller material:GCR15
Guard roll forming machine produce line
Equipment technical requirements
1. Floor space :32*3.5*1.7M
2. Feeding direction : left into right out.
3. Voltage parameter:308V 50HZ 3 ph .
4. Hydraulic oil :46#
5. Gear oil :18# hyperbola gear oil
Equipment main technical parameters:
1. Roll steel strip width :00 ~500 /750mm
2. Roll steel strip thickness :3.0~4.0mm
3. Roll steel strip material :Q235 cold roll steel strip(hot dipping steel strip)
4. On line punching holes and produce speed :2-8m
5. Roll length :2000-6000mm
6. Roll straight line error:1 ~1.5mm(1500mm)
7. Roll angle error :≤±1.5/1000mm
8. Motor anti-explosion grade :EXDIICT4
9. Motor defend grade :IP55
10. Equipment capacity :about 110KW
Roll product scope and size
1,Roll produce scope
1.1 Max thickness :3.0~4.0mm
1.2 Max width :310mm
1.3 Max height :85mm

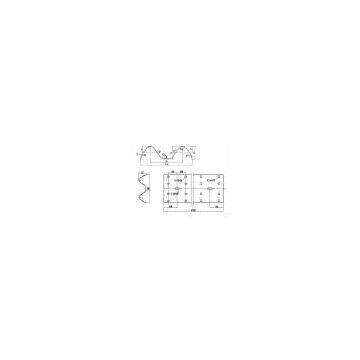

2. Plate size :
Equipment structure and function
1. Full -automation high speed guard roll forming machine constitute and technological process
1.1 guard roll forming machine constitute
1.2 Technological process
Auto feeding feeding guiding leveling punching forming cutting out table
2,Main equipment structure and function
2.1 Auto uncoiler
Material width:500mm material thickness :3.0~4.0mm
Material inner diameter :508mm
inner diameter size scop :480~530 mm
Material max out diameter :1200mm;
Loading weight:≤5T
Motor power :5.5KW
Expanding type: hydraulic expand
Feeding speed :0~10m/min,
2.2 Leveling system
a.Work rollers: seven rollers leveling machine
2.3 Hydraulic punching system :
Four post type punching system 3 suits,punching mould material:Cr12MoV
2.4 Hydraulic cutting machine
Cut according to length .
Cutter material :Cr12MoV
2.5 Roll forming machine
a. :Technical parameters
Horizontal rollers :about 13 pcs(two wave) /16 pcs (three wave)
Feeding material width:About 480MM/750MM
Moulding axle diameter:90mm
Horizontal rollers distance:about 350-550mm
Motor power:55KW/75KW
Speed reduce :ZQ650/750
Wire sspeed:3~10m/min
2.6. Out table
2.7. Electrical equipment control system :PLC
