Specifications

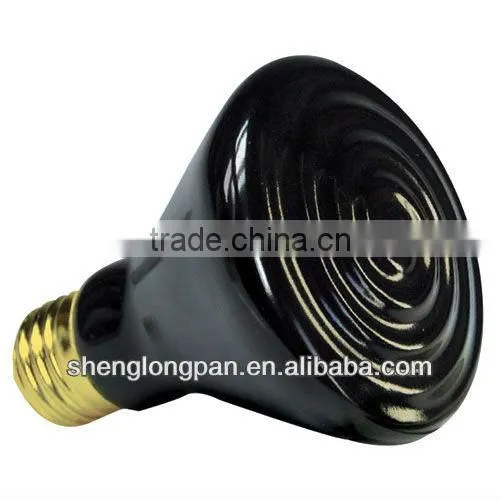

Reptile Ceramic Heat Emitter1.Material:Ceramic
2.Dimensions:122x122x36mm
3.Can OEM&ODM
4.Wide Application in Industry
Prodcuct Name:Reptile Ceramic Heat Emitter
Description
Reptile Ceramic Heat Emitter are 96% infrared energy efficient. Uses for electric infrared heat can be found in many industries and applications and can be grouped into four major categories.
- Curing
- Drying
- Heating
- Cooking
- Saunas
Within each of these major categories are literally hundreds of specific applications, and the list keeps growing as technology develops.
Our ceramic infrared heaters (emitters) are manufactured with three basic emitter faces: Concave, Flat and Convex. These emitter face styles will result in the specific radiant emission pattern as shown in our Ceramic Infrared Emitters Technical Manual. The concave surface will emit a “concentrated” radiant pattern which is highly effective when zone heating is desired as well as radiant heating in general. Flat surface emitters will produce a “uniform” pattern for even heating at a close proximity between the emitter and the target being heated. Finally, the convex shaped emitter gives off a “wide area” pattern which is desirable in comfort heating or other applications that require a dispersed radiant emission pattern.
These heaters are durable, splash-proof and have a non-corrosive finish. Maximum temperature output of up to 1292*F (700*C). Estimated life of 10,000 hours with one (1) year warranty.
Standard Features of Reptile Ceramic Heat Emitter
- Iron-chrome aluminium resistance wire
- Heater Voltage: 230~240 V standard except for the
- 250 W ESER bulb - 240 V as standard (other voltages available on request)
- Useful wavelength range: 2-10 microns
- Average Operating Life-Up to 20,000 hrs depending on conditions
- Recommended radiation distance from heater is 100 mm to 200 mm
- E27 tap on bulb cap
Application of Reptile Ceramic Heat Emitter
it's widely used, food, medical, electronics, plastics, wire and cable, automotive and packaging industries, for baking or a temperature, and other uses stereotypes.
Technic Index Data Sheet of Curved Ceramic IR Heater
1. Rupture strength for base body: |
440Kg/cm2 |
2.Resistance in common temperature: |
1012 ohm 0cm |
3.Property:good chemical stability;strong causticity-resistance;perfect oxidation-resistance | |
4.Heat losing in the non-radiation surface is small | |
5.The base body is heated to 800 C and put in cold water repeatly for ten times and no cracking. | |
6.The radiated element is heated after electrifying to rating power and immerged into cold water after interruption of power supply for forty times without damage. | |
7.The max radiance of element>0.9 | |
8.The effect of energy saving is obvious,increasing 10-25% compared with silicon carbide element | |
9.The life span can prolong more than a few times compared with silicon carbide element. | |
About Ceramic infrared Heater
What is Ceramic infrared heater?
Ceramic infrared heaters are made out of ceramics. These emitters have a Nichrome (NiCr) wire directly
casted into ceramic and they produce temperatures from 300 deg F to 750 deg F. The wavelength produced
with at these temperatures is between 3 6 microns. They feature a glazed surfaced to avoid for protection
from oxidation and corrosion. Typically ceramic infrared heaters need 10 15 minutes to reach full operating
temperature. A thermocouple can be casted directly into the ceramic. Ceramic infrared heaters come in
different colors which may indicate the temperature range. Some of ceramic infrared heaters also change
color when hot in order to easily recognize failed elements in a heater bank. They come in different shapes.
A flat surface spreads the infrared energy over a wider area, while a concave surface focuses the energy
more to a desired spot.Ceramic infrared heaters are used for comfort heating, saunas and for industrial
heating application requiring lower temperatures.
We have standrad size 245*60mm,240*60mm,122*122mm,122*60mm,60*60mm ,then
we can do as customer demand size
What are the common sizes of Ceramic infrared heater?
Size(mm) |
Shape |
Power(Kw) |
Size(mm) |
Shape |
Power(Kw) |
245×65 |
arc |
0.25-1.0 |
300×300×16 |
flat |
0.8-1.5 |
240×60 |
arc |
0.5-1.0 |
240×160×16 |
flat |
0.6-1.0 |
125×65 |
arc |
0.2-0.5 |
Φ70 |
disk |
0.1-0.2 |
120×60 |
flat |
0.1-0.325 |
Φ100 |
disk |
0.2-0.3 |
120×60 |
arc |
0.1-0.325 |
Φ140 |
disk |
0.3-0.4 |
120×120 |
flat |
0.1-0.8 |
Φ150×Φ100×Φ60 |
haff |
0.25-0.3 |
120×120 |
arc |
0.1-0.8 |
125×125 |
flat |
0.4-0.8 |
What are the Main Property of Ceramic infrared heater?
1 .Embedding type ceramic far infrared radiated elements apply glaze with high radiance,ceramic with
good heat and shock property are sintered once by nichrome wire.
2. Heat losing in the non-radiation surface is small.
3. It has energy efficiency and environmental protection benefits
4.The radiated element is heated after electrifying to rating power and immerged into cold water
after interruption of power supply for forty times without damage.
What are applications of Ceramic infrared heater?
1.Heating in PH environment (for example: Footwear processing, tape, plywood heating).
2.Stove machine with major vibration or impact (for example: Vacuum forming machine,
Compression Molding Machine).
3.Short distance heating (for example: Printing ink dryer, PCB repair station, Electric heating tables).
4.Heating in vertical or half round array (for example: Angle iron,Aluminum windows paint stove) .
Warm Tips:
Design and produce according to the requirements of customers on operating voltage, power, size, length etc.
