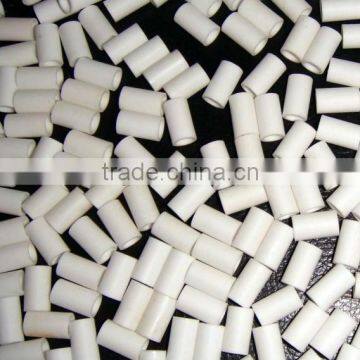

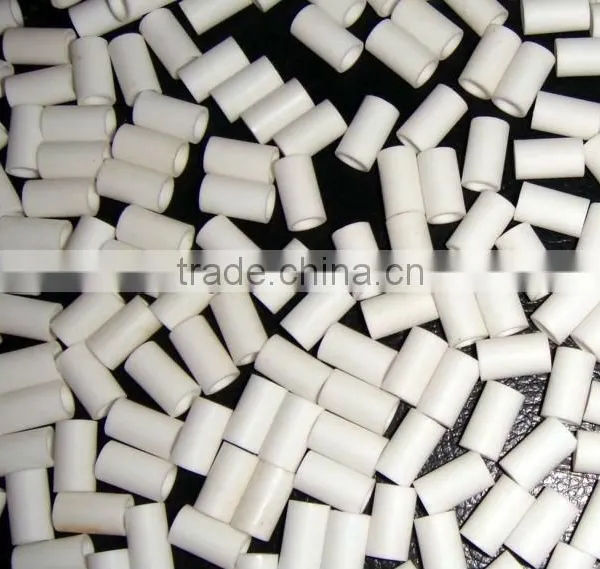

Help CenterAlumina Electronic Ceramic
Related Products
-
Electronic Ceramics for ThermostatsUS$ 0.05 - 2MOQ: 200 Pieces -
Electronical Ceramic Competitive PriceUS$ 0.05 - 2MOQ: 200 Pieces
-
Electronic Ceramic PartsUS$ 0.05 - 2MOQ: 200 Pieces
-
Electronic Ceramic,Ceramic Covering of ResistorUS$ 0.05 - 2MOQ: 200 Pieces
-
Electronic CeramicsUS$ 0.05 - 2MOQ: 200 Pieces
Specifications
Electronic CeramicsCeramic insulator
Industrial ceramic
Material:Zirconia,Alumina,Steatite ceramic
Prompt delivery
We manufactures custom technical ceramic parts and components ,covering a wide range of customer reuquirements .We make use of several forming and machining techniques to process components made from alumina, zirconia ,cordierite .These materials may be used in applications that require wear or coorosion resistance .high temperature capability ,or ceramic insulators for electrical resistance.
Name |
Unit |
Alumina |
Zirconia |
||
Content |
% |
≥95 |
≥99 |
≥99.7 |
≥94 |
Density |
g/cm3 |
3.65 |
3.80 |
3.90 |
6.00 |
Hardness (Hv0.5) |
GPa |
13.1 |
15.0 |
17.1 |
13.2 |
|
flexural strength
|
MPa≥ |
340 |
310 |
370 |
1000 |
Elasticity |
GPa |
300 |
330 |
350 |
200 |
|
Poisson's ratio
|
|
0.23 |
0.23 |
0.23 |
0.30 |
Max Tem. |
°C≥ |
1400 |
1750 |
1800 |
1050 |
Heat expansion |
×10-6/°C(40-800°C) |
7.8 |
8.0 |
8.0 |
11.0 |
|
Thermo conductivity
|
W/m·K( 20°C) |
22 |
28 |
31 |
2.6 |
Thermal Resistance |
°C |
200 |
200 |
230 |
300 |
|
dielectric strength
|
V/m |
15×106 |
15×106 |
15×106 |
11×106 |
|
dielectric phase angle (1MHz) |
×10-4 |
4 |
2 |
1 |
16 |
SIC(1MHz) |
|
9.2 |
9.8 |
9.9 |
33 |
|
Nitric Acid (60%)90°C |
WT Loss mg/cm2/day≤ |
0.12 |
0.10 |
0.05 |
≠0 |
|
Sodium hudroxide (30%)80°C |
WT Loss mg/cm2/day≤ |
0.53 |
0.26 |
0.04 |
0.08 |
