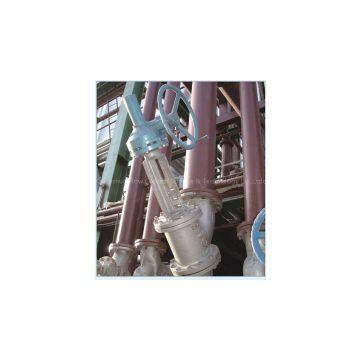

Featuring abrasion resistance,high pressure resistance,erosion resistance and anti-scabbing performance,the Y type globe valve for slurry control is specially offered for controlling or stopping the slurry.The applicable industry includes alumina,metallurgy and mining
Features
1、The valve body of globe valve for alumina slurry control is consisted of two pieces. The left and right valve bodies are provided in geometric design. Besides the solidworks software for three -dimensional contouring ,the ANSYS software is also applied for flow field analysis.
2、The valve seat of y type globe valve is separated from the valve body.Installed between the two valve body ,so the valve seat can be replaced easily .
3、To ensure the rectilinear motion of the valve stem ,there is an anti-rotation device provider for the valve stem of the 3 y type slurry valve .
4、There is a protection plate offered for he inner cavity of the valve body .The plate is erosion resistant and corrosion resistant.
5、The sealing surface of the valve seat and the valve disc is overlaying hard alloy or painted with tungsten carbide.With higher hardness ,the Y type globe valve has good abrasion resistance .
6、The range of product is anti-scaling,which are widely use in alumina refinery.
Technical parameter
Pressure ：Class 150~Class 600 PN1.0~PN16
Body material：WCB, CF8, CF8M, CF3, CF3M etc
Connection type :Flange ,weld type
Driving method:Manual
Application
Alumina industry
Chemical industry
Nonferrous metal industry
