Bundle Strap Polyester Webbing Made in China

Technical Data of polyester webbing :

50mm Ratchet Lashings with Ergo-ratchet, LC: 2500daN/5000daN, according to EN 12195-2, with GS certificate approvaled by TUV SUD.

1. Belt Material: 100% Polyester

2. Belt Width: 50mm

3. Belt Color: Red/Yellow/Orange/Blue/Green+ 5 black strips

4. Belt Strength: 7500daN

5. LC: 2500daN/5000daN

6. STF: 500daN

7. Length: 6m/ 8m/9m/10m/12m/15m

8. Fixed  end Length: 0.4m/0.5m

9. Packing: each piece in shrink film

Features:

* Meet all requirements of EN 12195-2

* Higher pre-tension(STF=500 daN) due to the fine teeth and the long handle and especially the power increased handle of ratchet

* In accordance with the law of physical sport, more labor-saving due to power increased handle

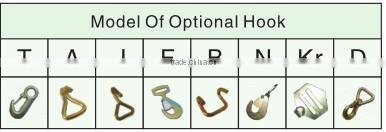

* Various end fittings are available to suit specific lashing needs

* The locking mechanism for load transport extra security

* More working efficient, because 6 teeth of the ratchet are moved by a cycle of handle pushing(3 teeth of the ratchet are moved by a cycle of handle pushing of the normal ratchet)

Warning:

* Not for lifting!

* Only trained and authorized persons are permitted to use the ratchet tie down.

* Working Temperature: - 40°C to + 120°C for polyester (PES).

Caution:

1. Do not exceed the lashing capacity indicated by the manufacturer! In the case of improper use, the transported articles can not be secured correctly and may cause damages.

2. Protect the webbing against sharp edges!

3. Examine the wear or damages of the web lashing before each use. If any wear and damages at the webbing or damages at the metal parts, do not use the ratchet tie down any longer.

4. Make sure the webbing is fitted without twists and in such a way that may influence the rated lashing capacity, otherwise it may cause damages.
