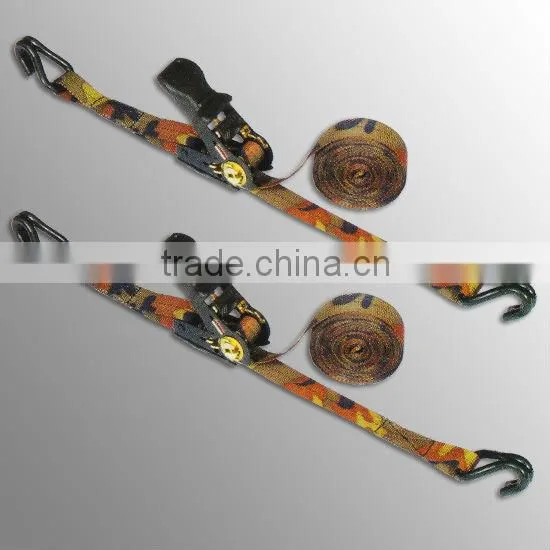

25mm Ratchet Tie Down Straps With Double J Hooks From China Manufactory

Specifications

Technical Data of ratchet tie down straps :

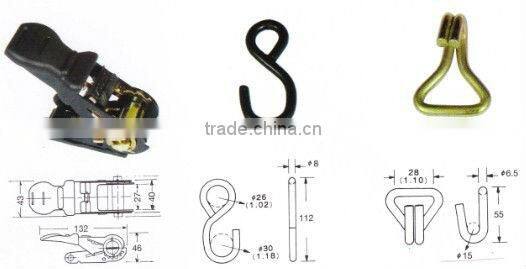

25mm Ratchet Lashings with ratchet with rubber grif and S Hooks, LC: 250daN/500daN, according to EN 12195-2, with GS certificate approvaled by TUV SUD.

1. Belt Material: 100% Polyester

2. Belt Width: 25mm

3. Belt Color: Red/Yellow/Orange/Blue/Green

4. Belt Strength: 750daN

5. LC: 250daN/500daN

6. Length: 5m/ 6m/8m

7. Fixed  end Length: 0.3m/0.4m/0.5m

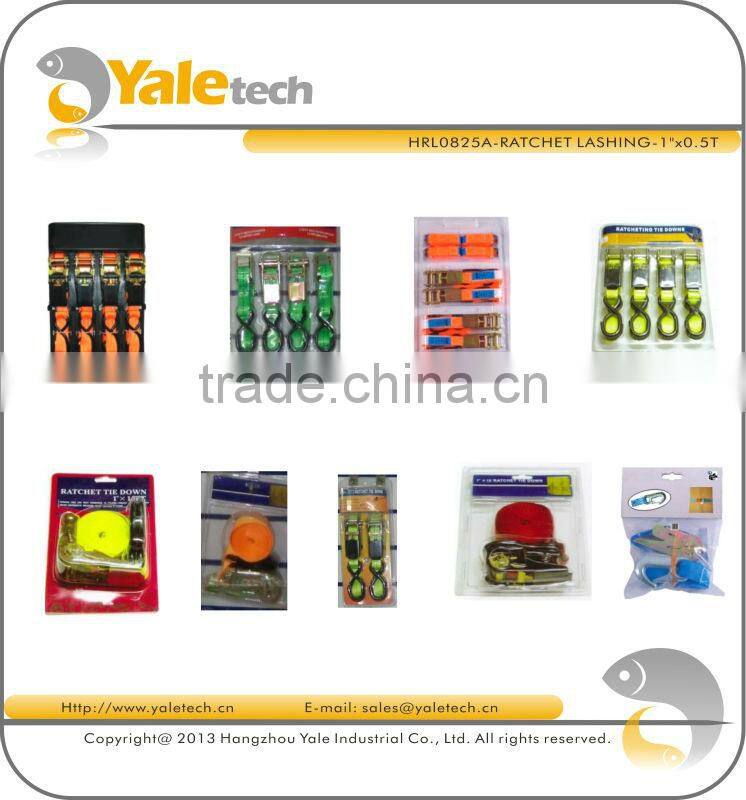

8. Packing: each piece in shrink film

Features:

This ratchet cargo lashings are used for securing truck loads, tying down loads while transporting, shifting or moving them. They have replaced traditional jute ropes, chains and wires used for transportion and for a vairety of other applications securing truck loads. The use of cargo lashings can reduce the chance of load damage and also protect other traffic party.

The main advantage of ratchet cargo lashings are:

* Load restrain using a tension device(ratchet)

* Effective and safe control of loads during transportation

* Extremely quick and efficient tie down and release the load thus saving time

* No damage to the load being tied down

Warning:

* Not for lifting!

* Only trained and authorized persons are permitted to use the ratchet tie down.

* Working Temperature: - 40°C to + 120°C for polyester (PES).

Caution:

1. Do not exceed the lashing capacity indicated by the manufacturer! In the case of improper use, the transported articles can not be secured correctly and may cause damages.

2. Protect the webbing against sharp edges!

3. Examine the wear or damages of the web lashing before each use. If any wear and damages at the webbing or damages at the metal parts, do not use the ratchet tie down any longer.

4. Make sure the webbing is fitted without twists and in such a way that may influence the rated lashing capacity, otherwise it may cause damages.
