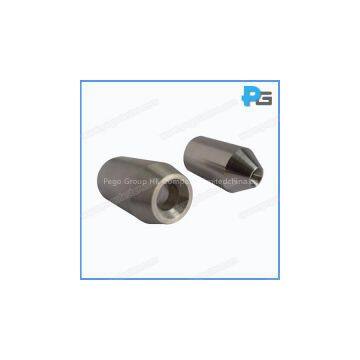

IPX5 and IPX6 6.3mm/12.5mm nozzle
Introduction:
6.3mm and 12.5mm nozzle are designed according to IEC60529-2001 regarding the second characteristic numerals 5 and 6. Waterproof test simulates the condition of raining, which is mainly applied to electronic products, luminaire, electric components, motor and house-holding appliance. The waterproof test can help to judge the products’ performance, and provide the basis for design, improve and inspect.
Model IPX56A IPX56B
Internal diameter of the nozzle (mm) 6.3 (IPX5), 12.5 (IPX6)
Delivery rate (L/min) 12.5±0.625 (IPX5), 100±5 (IPX6)

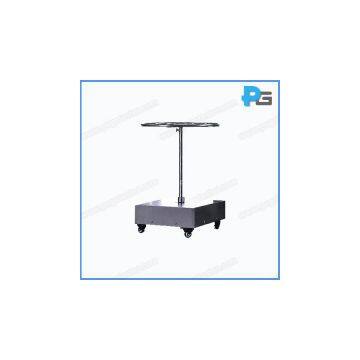

Turntable diameter (mm) 600 600
Distance between nozzle and test object 2.5-3m
Nozzle fixed type Manual mechanical
Product under test (max) 50KG 60cm*60cm*60cm
Water tank(cm) 420L, 70*50*120
Outer dimension(cm) 103*78*135 360*118*185
Power 380V 380V
