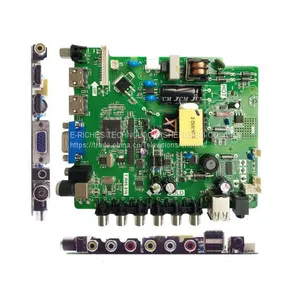

I. Main Features:
Adaptable Market: Asia-Pacific, African, MENA market
Main IC: RDA8501, RDA8501C, RDA8501D or RDA8501G
OSD language: English, French, Thai, Arabic, Hindi
Note: 8501D stands for Dolby, 8501G supports 3000 games
II. For Panel:
Panel Size (inch): 26, 28, 31,5, 32
Panel Type: TFT LCD, LED backlight (LG, Samsung, AUO, Phillip, Sony, Open cell)
Maximum Resolution: up to 1920*1200
Panel voltage: 5V, 12V
Panel connector: single or double LVDS type
III. For Keypad:
Keypad type: 14-PIN connect to ground
Keypad button function: INPUT, MENU, VOL+, VOL-, CH+, CH-, POWER
IV. Input /Output ports:
Input: HDMI1, HDMI2, VGA, PC audio, RF tuner, CVBS 2, CVBS 1, USB1, USB2
Output: CVBS (single RCA type), Earphone
DC2.0: External power supply, power connector is 2.0mm inside diameter
PC VGA: resolution up to 1920*1080 at 60Hz
HDMI: CEC, ARC, MHL optional
CVBS video in: PAL/NTSC/SECAM at 1.0Vp-p ± 5%
PC Audio (earphone) input: 0.2-0.5 Vrms
*USB: supports multimedia record and playback, games (optional), software upgrade,
USB1 copy and paste to USB2
Max current of USB is 500mA.
ATV:
TV system: PAL BG, DK, I / NICAM/A2
TV frequency range: 48.25MHz -863.25MHz total 199 channels
V. Speaker output:
Frequency response: 100Hz-15KHz at ± 3dB (1KHz reference signal)
100Hz-15KHz at ± 3dB, 2*5W (8ohm) / 2*8W (4ohm) THD+N<10% at KHz
Amplifier IC: YOUDA
VI. Power and Backlight:
Rated Power: 65W
Backlight power: 25W
Backlight voltage: 816L: 33V-43VDC, 816M: 43V-63VDC
Standby power <0.5W (for board only)
