Applications:

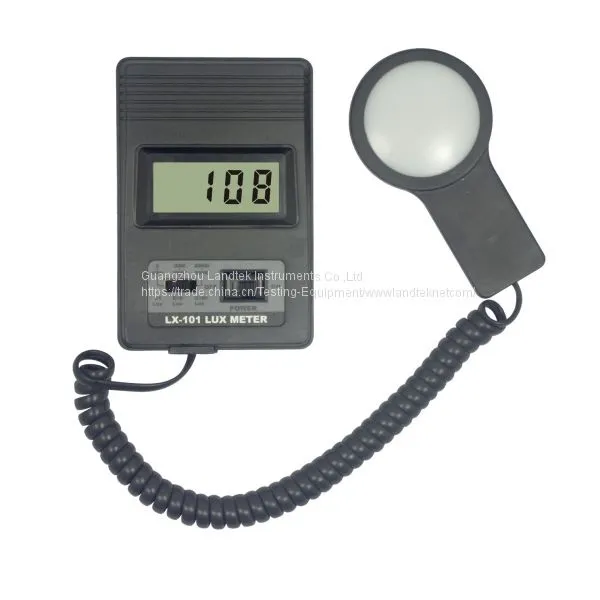

The Lux Meter is a specialised instrumentation measuring luminosity, brightness. widely used in electro-optical sources, research teaching, metallurgy building, industry inspection as well as agriculture researching and illumination control.
* Digital display gives exact reading with no guessing or errors.
* Separate light sensor allow user take measurement at optimum position.
* Multi-parameter measurement: Lux & FC.
* Wide measuring range and high resolution.
* In build low battery indicator.
* Max value hold function.
* The use of durable, long lasting components, including a stronge, light weight ABS-plastic housing assures maintenance free performance for many years. The housing has been carefully shaped to fit comfortabley in either hand.
General Specifications:
| Display | 4 Digits, 10 mm LCD | |
| Parameters Measured | Lux | |
| Measuring Range | 0 ~ 50,000 Lux, 3 Ranges | |
| Max Value Hold Function | ||
| Battery Indicator | Low Battery Indicator | |
| Operating Conditions | Temperature: 0 ~ 50 °C (32 ~ 122 °F) Humidity:<80 %RH | |
| Power Supply | 1 x 9V 6F22 | |
| Dimensions | Main Unit: 108 x 72 x 23 mm | |
| Sensor: 96 x 58 x 16 mm | ||
| Weight | 175 g (Including Batteries) | |
Electrical Specifications:
| Range | Resolution | Accuracy (23 ± 5 °C) |
| 0 ~ 1,999 Lux | 1 Lux | ± ( 5% n + 5 d ) |
| 2,000 ~ 19,000 Lux | 10 Lux | ± ( 5% n + 5 d ) |
| 20,000 ~ 50,000 Lux | 100 Lux | ± ( 5% n + 5 d ) |
Standard Accessories :
1. Main Unit
2. Carrying Case(B07)
3. Operation manual
