Help CenterSG12B Heating Tube Compressing Machine
Related Products

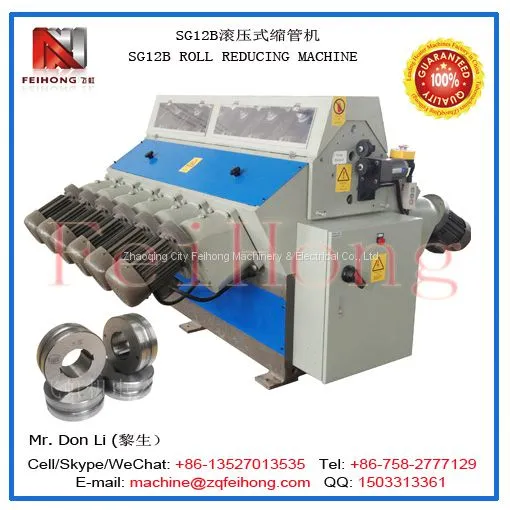

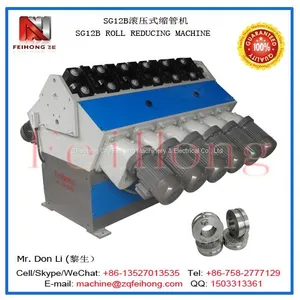

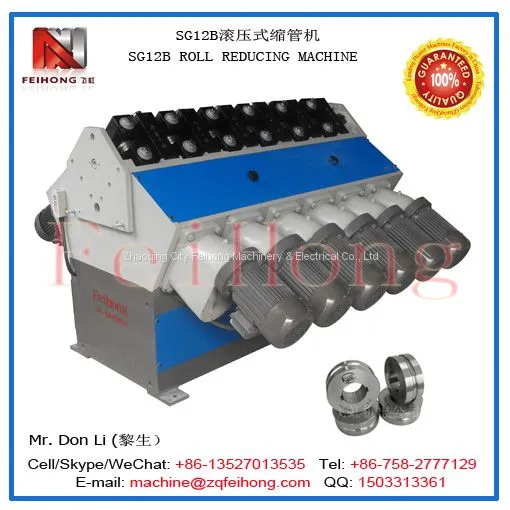

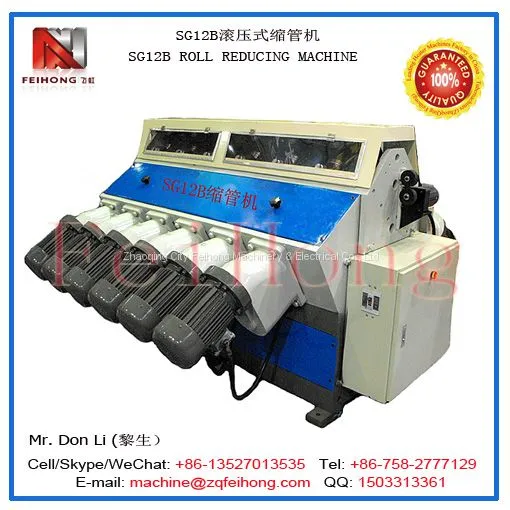

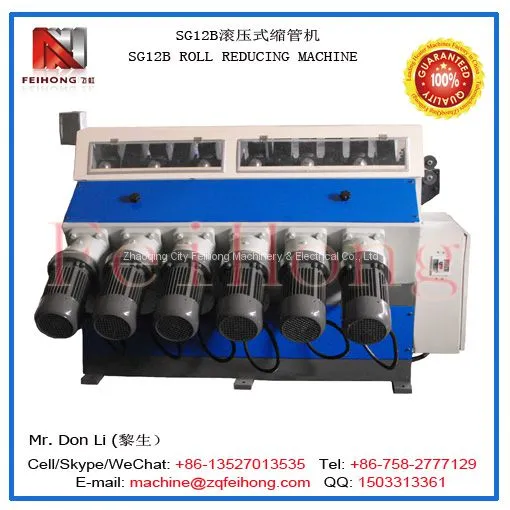

SG12B Roll compressing/Reducing Machine is a reducing machine which refer to similar imported equipement, and combined with our national conditions, research and development by Feihong. It is the only one kind of machine which can reduce the circular tubes, the flat tubes and the elliptic tubes in the market at present. Reduce tubes specifications among 3.5mm-45mm. Further more, the machine install the auto marking mechanism, so it can automatically engrave the words on the surface of the workpiece during reduce process.
MAIN TECHNICAL PARAMETER:
1. revolving speed of roller： uniform speed（118rpm）or non-uniform speed（450rpm）
2. roller dimension ：outside diameterφ98.5mm 、 inside diameterφ45mm 、 thickness 38mm
3. center distance between rollers：115mm
4. down available：0.5mm
5. single motor power:1.1kw-2.2kw
6. power supply: 380V 50Hz
7. complete machine power: depend on the number of stations
