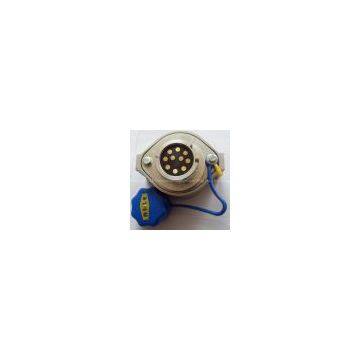

CZ-01 Slot Truck Plug
1) Truck plug original made from Australia liquip company is used for overfill protection with added ground assurance. Industry standard 10 pin overfill protection plug is interchangeable with others of the same type, however incorporates no-cost wiring connectors which ensure the tanker is bonded to the gantry so long as the plug body is correctly mounted.
2) This dissipates static electricity and prevents sparks due to differences in potential. TP series provides standard 10 pin connection for tanker system with room for an electronic dummy should this be required in a 2-wire operation.
3) All of the above is normal.
4) Where TP series differs is in the way it ensures good grounding of the tanker to the gantry and ensures dissipation of static electricity and so eliminates sparks. Hence the name "Ground Boss".
5) It has long been a recommended practice to break the number 10 common earth return and "force" it through the tanker frame by terminating and bolting the wire through the tank at a distance apart to ensure grounding of the tank. However the difficulty in doing this cheaply and neatly has meant that only a few tankers use the technique.
6) "Ground Boss" achieves this at essentially no cost by using the mounting bolts inside the plug. Internal insulating bushes ensure the only electrical path is via the external fastener, i.e. those bolted to the tanker: and the number 10 common earth wire is run from pin 10 to one bolt head and from under the other bolt head via conduit to the probes. 9 and 10 are simply looped together if required. Therefore the only way the tanker can load is by having its tank in good contact with the rack monitor earth.
7) Features:
◆ 3 and 4 bayonet fixing to industry standard
◆ 10 pin as standard
◆ Conduit ports 1/2" NPT (straight) thread, two options
◆ Mounting by 2 stainless steel bolts 8mm dia. via Delrin insulating bushes
◆ TP103 - 3 pin bayonet fastening
◆ Weight-1.3kg.
◆ Aluminium nose-cone, hard anodised
◆ Stainless steel pins and terminator
