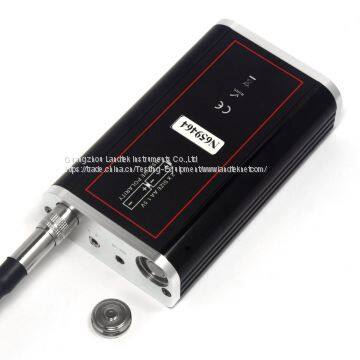

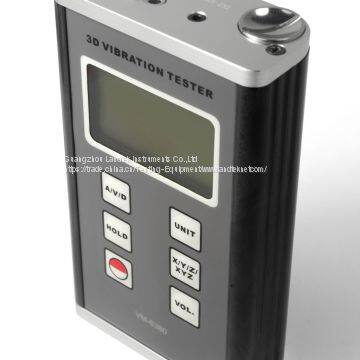

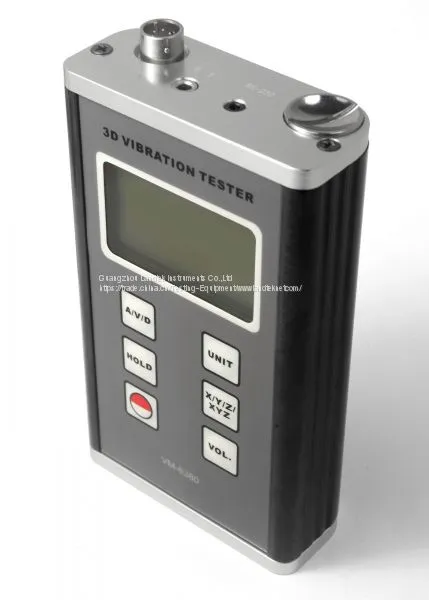

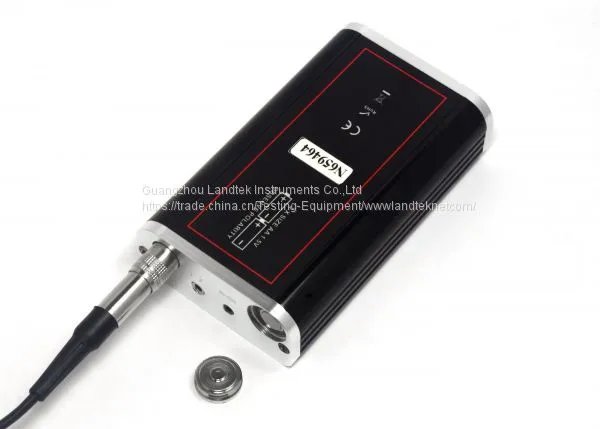

New 3 -Axis Vibration Meter VM-6380(3D)
- 2000 Piece / Pieces per Month
- Guangzhou
- T/T PayPal Other
- 3 days
Product Details
Brand Name: | Landtek | Place of Origin: | China | Model Number: | VM-6380 |
Product Description
Applications:
Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use “USB data output” and “RS-232 data output” to connect with PC.
Sensor | 3-Axis Piezoelectric Accelerometer |
Measuring Range | Acceleration: 0.1~400 m/s² 0.3~1312 ft/s² 0.0~40 g Equivalent Peak |
Velocity: 0.01~400 mm/s 0.004~16.0 inch/s True RMS | |
Displacement: 0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak | |
Frequency Range | Acceleration: 10 Hz ~ 1k Hz 10 Hz ~ 10k Hz |
Velocity: 10 Hz ~ 1k Hz | |
Displacement: 10 Hz ~ 1k Hz | |
Accuracy | 5 % of Reading + 2 digits |
Metric / Imperial Conversion | |
Analogue Output | AC Output 0~2.0 V Peak Full Scale (Load Resistance: Above 10k) |
Max. Value Hold | |
Power Off | Manual Power Off or Auto Power Off |
Battery Indicator | Low Battery Indicator |
Data Output | USB, RS-232 |
Operating Conditions | Temperature: 0~50 °C Humidity:<90 %RH |
Power Supply | 2 x 1.5V AA size (UM-3) Battery |
Dimensions | 130 x 76 x 32 mm |
Weight | 340 g (Not Including Batteries) |

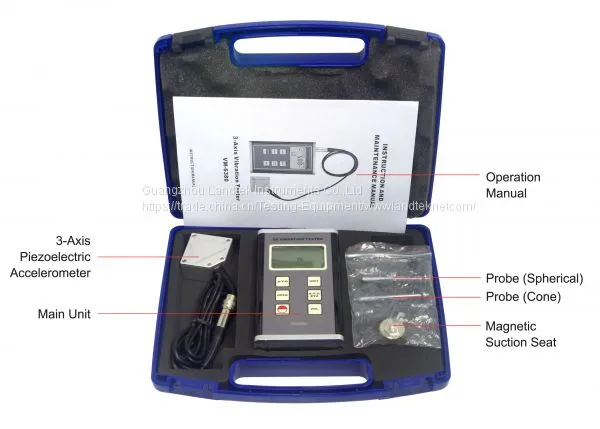

Standard Accessories:
1. Main Unit
2. Magnetic Suction Seat
3. 3-Axis Piezoelectric Accelerometer
4. Probe (Cone)
5. Probe (Spherical)

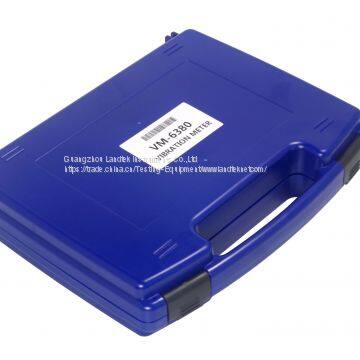

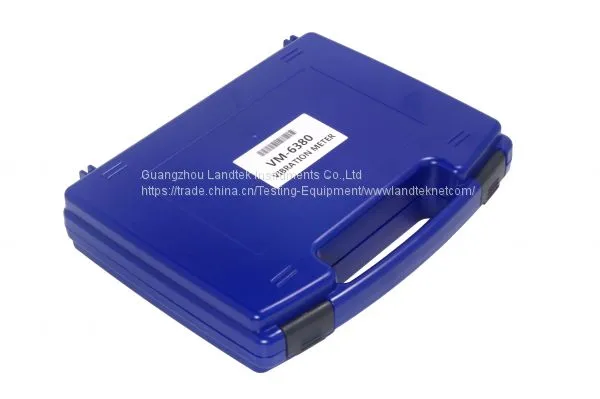

6. Carrying Case
7. Manual Book
Optional Accessories:
1. Headset
2. USB, RS-232 data cable with software
