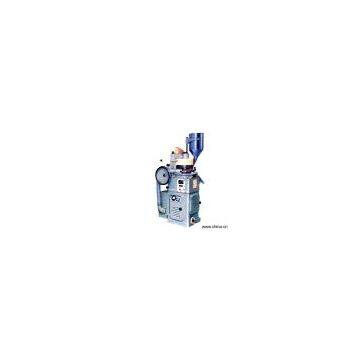

Sell Rotary Tablet Press
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1969
Total Employees:
101 - 200 People
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Model No.:ZP17, ZP19
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:
Description:Application: This machine is suitable for pressing round tablets from various kinds of granular materials, but also different geometrical shape tablets, specially for small-scale batch production. During operation, the speed of the turret rotation, the depth of the filling material and thickness of the tablets can be adjusted. The mechanical buffer unit will prevent punches and apparatus from overload damage. A powder suction unit is attached to take in the residual powder operation, so that the blockage by the residual powder can be eliminated and the collected powder material can be reused.Main Technical Specifications Dies 19 Sets 17 Sets Max. Pressure 40kn 50kn Max. Dia. of Tablet 12mm 20mm Max. Depth of Fill 15mm 15mm Max. Thickness of Tablet 6mm 6mm Turret Speed 20-40/min 20-40/min Production Capacity 25000----45000 pc/h 20000----40000pc/h Motor 2.2kw 960r/min 380/50Hz 2.2kw 960r/min 380/50Hz Overall Size 880 x 750 x 1600mm 880 x 750 x 1600mm Net Weight 560Kg 560Kg
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:
Description:Application: This machine is suitable for pressing round tablets from various kinds of granular materials, but also different geometrical shape tablets, specially for small-scale batch production. During operation, the speed of the turret rotation, the depth of the filling material and thickness of the tablets can be adjusted. The mechanical buffer unit will prevent punches and apparatus from overload damage. A powder suction unit is attached to take in the residual powder operation, so that the blockage by the residual powder can be eliminated and the collected powder material can be reused.Main Technical Specifications Dies 19 Sets 17 Sets Max. Pressure 40kn 50kn Max. Dia. of Tablet 12mm 20mm Max. Depth of Fill 15mm 15mm Max. Thickness of Tablet 6mm 6mm Turret Speed 20-40/min 20-40/min Production Capacity 25000----45000 pc/h 20000----40000pc/h Motor 2.2kw 960r/min 380/50Hz 2.2kw 960r/min 380/50Hz Overall Size 880 x 750 x 1600mm 880 x 750 x 1600mm Net Weight 560Kg 560Kg
