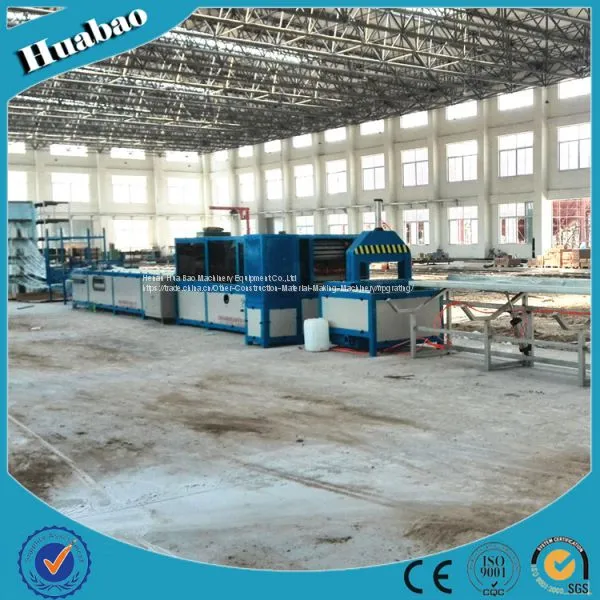

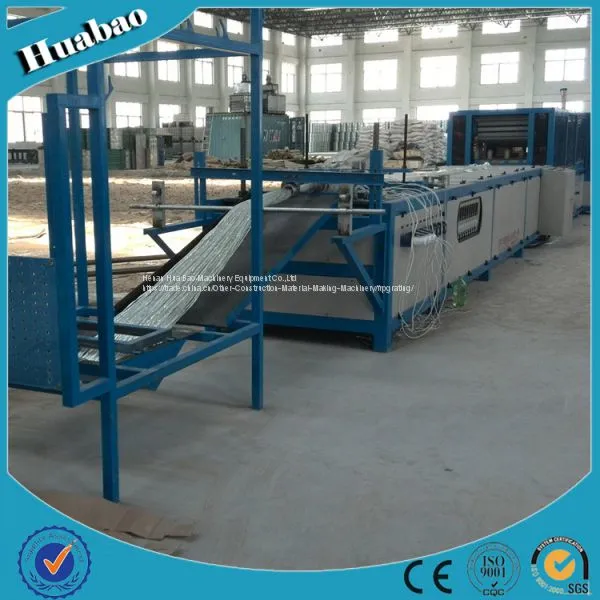

high efficiency pultrusion machine with competitive price for sheet pipe tube rod profiles

L×W×H(m)

9×1×1.6

9×1×1.6

9×1×1.6

9×1×1.6

Max Pultrusion Size(mm)

600×350

600×350

600×350

800×400

Max Clamping Capacity

5T

8T

10T

15T

Max Pulling Capacity

5T

8T

10T

15T

Pulling Speed(m/min)

0-1.2

0-1.2

0-1.2

0-1.2

Motor Power

1.1kw×2

Speed reducer type

1.1kw×2

Speed reducer type

5.5kw

Hydraulic type

5.5kw

Hydraulic type

Control for Machine

PLC

PLC

PLC

PLC

Traction Range(mm)(Custom)

≤450

Champing Size(mm)(Custom)

2000

Drive reducer model

SCLB77-F(YVP1.1)-249.8-K-B5

Drive motor model

YVP90S-4

Glue block paramaters(Custom)

300*45*25

Track transmission form

Chain transmissiom

Number of hot zone(Custom)

3zone&6zone

Mold heating temperature range

0-200℃

Traction center height(mm)

1100

Gas working pressure(Mpa)

0.5-1

Heating output power

3-15kw

Power supply requirements

3*380+N+PE
