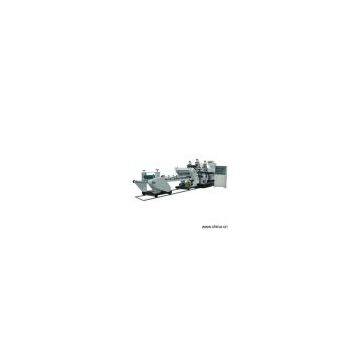

Sell 3-layer Plastic Sheet Extruder
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1990
Total Employees:
101 - 200 People
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Model No.:
Product Origin:China
Brand Name:
Price Terms:FOB Shanghai or Ningbo
Payment Terms:T/T
Certification:
Description:Product Name: 3-layer Plastic Sheet ExtruderPlace of Origin: ChinaFeatures: 1) This machine has been designed and made by advanced domestic and imported technology 2) Mainly used to produce PP, PS, PE, ABS, HIPS plastic sheets for making beverage mugs, ice cream cups, jelly cups and other packing containers 3) Good molding, equal sheet thickness and constant flowing speed 4) Large L/D ratio (extrusion unit screw) 5) Screw, die head and drum are made of high quality alloy sheets, with optimum hardness, strong corrosion resistance and long operating life (after nitrogen treatment) 6) Advanced net-electricity-changed device in the die head results in easy operation and high production efficiency 7) 3-roller structure improves sheet quality 8) Uses an advanced frequency converter, linear speed of rollers and drive easily adjusts 9) Sheet width: 670mm 10) Sheet thickness: 0.3-2.0mm 11) Screw diameter: 960-45-45mm 12) L/D screw ratio: 1:30 13) Main motor power: 45-15-15kW 14) Max. output: 235kg/h 15) Total power: 120kW 16) Overall dimensions: 11.5 x 2.15 x 2mm 17) Total weight: 7.6MT
Product Origin:China
Brand Name:
Price Terms:FOB Shanghai or Ningbo
Payment Terms:T/T
Certification:
Description:Product Name: 3-layer Plastic Sheet ExtruderPlace of Origin: ChinaFeatures: 1) This machine has been designed and made by advanced domestic and imported technology 2) Mainly used to produce PP, PS, PE, ABS, HIPS plastic sheets for making beverage mugs, ice cream cups, jelly cups and other packing containers 3) Good molding, equal sheet thickness and constant flowing speed 4) Large L/D ratio (extrusion unit screw) 5) Screw, die head and drum are made of high quality alloy sheets, with optimum hardness, strong corrosion resistance and long operating life (after nitrogen treatment) 6) Advanced net-electricity-changed device in the die head results in easy operation and high production efficiency 7) 3-roller structure improves sheet quality 8) Uses an advanced frequency converter, linear speed of rollers and drive easily adjusts 9) Sheet width: 670mm 10) Sheet thickness: 0.3-2.0mm 11) Screw diameter: 960-45-45mm 12) L/D screw ratio: 1:30 13) Main motor power: 45-15-15kW 14) Max. output: 235kg/h 15) Total power: 120kW 16) Overall dimensions: 11.5 x 2.15 x 2mm 17) Total weight: 7.6MT
