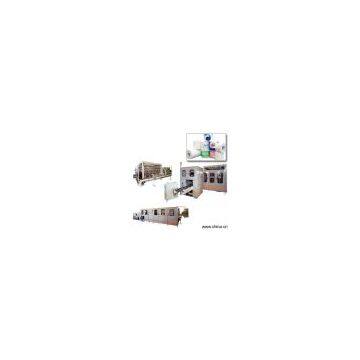

Sell Toilet Roll & Kitchen Towel Production Line

Model No.:JM-2002
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:
Description:Main features: JM-2002 Toilet roll/kitchen-towel production line is unique and the most advanced fully automatic in China at present. It has achieved the advanced level in this field abroad. It has even been exported to the countries in Southeast Asia,Far-east countries and South America, where is has been fully accepted. The equipment applies PLC controlling system that automatically inspects the machine running. Automatic tension control system can be suitable and applicable for each type of parent roll. The equipment is provided with a computing controlling system. It has the advantages of high capacity, quality, production speed, efficiency and low energy consumption. Technical parameters: A. ZDJ-XJ automatic rewinding machine 1. Model: 1760, 2800 (other sizes to be ordered) 2. Parent width: 1900mm, 2700mm (other sizes to be ordered) 3. Parent roll core: max. (dia.) 1200mm (other sizes to be ordered) 4. Parent roll core: 3 inches (dia. 76mm) (other sizes to be ordered) 5. Unloading stand: one or two (other sizes to be ordered) 6. Perforating pitch: 115mm, 230mm (other sizes to be ordered) 7. Product size: (dia.) 90 - 130mm 8. Rewinding system: Replace rolls without stop, automatic pushing out 9. Core replacement system: (dia.) 38 - 45mm (automatic feeding) 10. Tension controlling: automatic tension, fluctuating tension 11. Feeding core function: (dia.) 42 - 48mm pieces of core at one time (other sizes to be ordered) 12. Convey system: flat belt, synchronous belt, gear driving 13. Installed power: AC 380V 50Hz 35-45kW( total power) 14. Air pressure: 0.5MPa (prepared by the purchaser) 15. Production speed: toilet roll: 220-280m/min; kitchen towel: 200-250m/min Optional parts: 1. Embossing device: a. steel to rubber roller embossing, point to point embossing or crossed embossing and glue application device (for kitchen towel) b. Steel-to-steel roller (Model 1760), steel to rubber, steel to wool roller, felt roller (for toilet roll) B. Conveyer 1. Convey distance: 8 - 10m (other sizes to be ordered) 2. Controlling system: independently convey, joining production 3. Installed power: AC 380V 50Hz 0.55 - 2.2kW C. Accumulator 1. Model: 1575, 1760, 2500, 2800 2. Accumulating distance: 1,700mm, 1,900mm, 2,400mm, 2,700mm 3. Tissue roll diameter: (dia.) 80 - 130mm 4. Accumulating quantity: 100 - 120 pieces (other sizes to be ordered) 5. Accumulating speed: 20 - 25 pieces/min 6. AC380V 50Hz 4.4kW D. ZDJ-Q automatic log saw 1. Parent diameter: (dia.) 80 - 130mm (can replace collets) 2. Parent roll length: (max.) 2,700mm 3. Cutting length: servo tracking, adjustable 4. Spiral knife diameter: (dia.) 610mm 5. Milling system: diamond grinding wheel, automatically 6. Installed power: AC380V 50Hz 11kW (total power) 7. Cooling and lubrication system: automatically, adjustable time 8. Production speed: 90 - 140 cuts/min (double lines unloading construction)
