Product Description

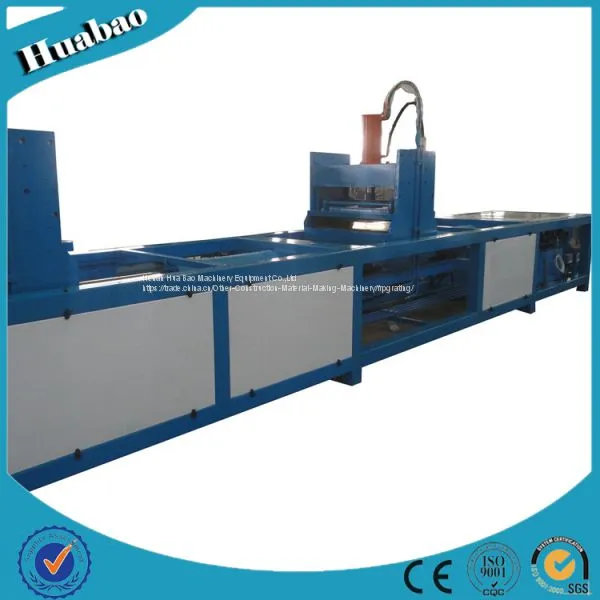

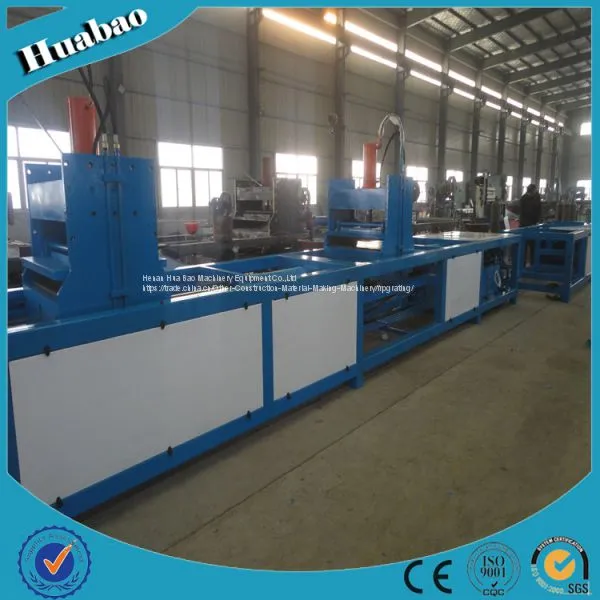

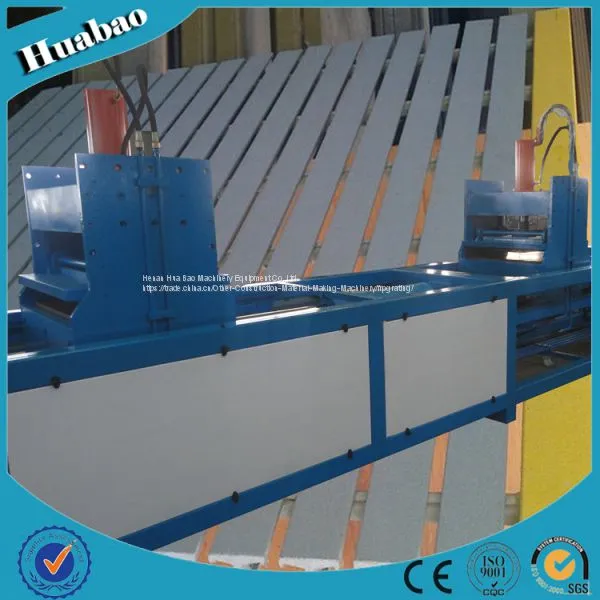

Hydraulic Pressure FRP Profile Pultrusion machine and mould
The machine adopts the hydraulic drive. It can be used to produce different size and type FRP products such as cable bridge, I-steel, guardrail and so on with different moulds. It is totally automatic.
Our machine characteristics:
1. Strong traction ,stable and reliable function
2. The latest technology and Famous brand accessories
3. Double gantry automatic reciprocating running function
4. Double hydraulic system
5. Traction speed can make stepless adjustment
6. Manufacturing technique can make easily adjustment
The main technical index of FRP production hydraulic pultrusion machine
LEARN MORE
Model | 8T | 10T | 15T | 20T | 25T | 30T | 40T |
L×W×H(m) | 10×1×1.95 | 10×1×1.95 | 10×1×1.95 | 10×1.1×2 | 10×1.1×2 | 11×1.2×2 | 11×1.4×2 |
Max Pultrusion Size(mm) | 600×350 | 600×350 | 600×350 | 800×400 | 800×400 | 800×400 | 1000×400 |
Max Pulling Capacity (Customized) | 8T | 10T | 15T | 20T | 25T | 30T | 40T |
Max Clamping Capacity(Customized) | 8T | 10T | 15T | 20T | 25T | 30T | 40T |
Pulling Speed | 0-1.5 | 0-1.5 | 0-1.5 | 0-1.2 | 0-1.2 | 0-1.2 | 0-1.2 |
Motor Power (Customized) | 4kw×2 | 4kw×2 | 4kw×2 | 5.5kw×2 | 7.5kw×2 | 7.5kw×2 | 11kw×2 |
Control for Machine | PLC | PLC | PLC | PLC | PLC | PLC | PLC |
Max working Pressure | 6.3MPa | ||||||
Working Pressure | 2-6.3MPa | ||||||
Pressure | 0.4-0.6MPa | ||||||
Number of heating zone(Customized) | 3 zones and 5zones | ||||||
Mould heating temperature | 0-200℃ | ||||||
Hot put power | 3-15kw | ||||||
Power requirement(Customized) | 3*380+N(4*10mm2) | ||||||
Working Mode | Single, Synchronism, Alternation | ||||||
Transmission medium | Antiwear hydraulic oil in summer, 32#hydraulic oil in winter | ||||||
