Home > Chemicals > Plastic Products > Other Plastic Products > HDPE Hollow Plastic Balls for Save Water
US$ 0.1 - 2
MOQ: 10000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
NTL
Model Number:
Customized
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Heavy Load Universal Roller Ball Transfer SP-25US$ 2.3 - 2.3MOQ: 10 Pieces -
Gas Spring Rod End With Clevis, U Fork and End Fitting G12*48US$ 1 - 10MOQ: 10 Pieces
-
Galvanised Steel and Stainless Steel 316 DIN71752 CLEVIS/FORK G16*64US$ 1 - 10MOQ: 10 Pieces
-
Stainless Steel 316 Material u Clevis Model G12x24US$ 1 - 10MOQ: 10 Pieces
-
Galvanised Steel Material Cylinder Clevis Model G10x40US$ 1 - 10MOQ: 10 Pieces
Place of Origin
Jiangsu, China
Brand Name
NTL
Model Number
Customized
Plastic Modling Type
Injection

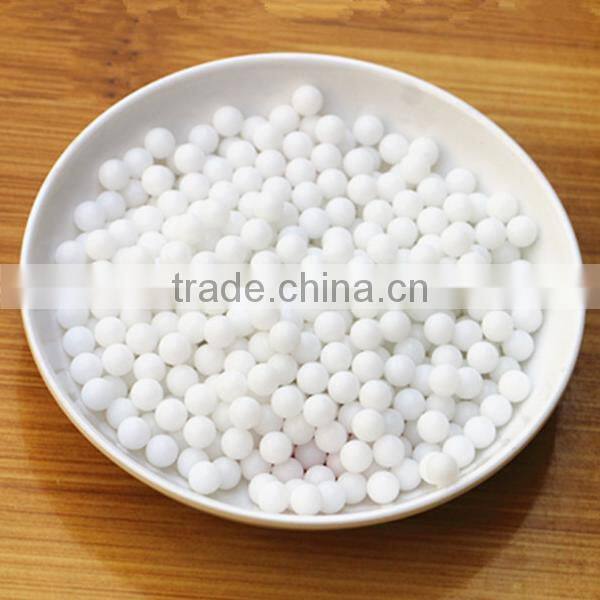

HDPE hollow plastic balls for save water
Feature:
Plastic balls with high hardness and rigidity, excellent abrasion resistance and lubricity, which is high density, crystallinity of linear polymers, and resistance to repeated impact, small changes in intensity
Technical parameter:
| Diameter | Piece weight | Number/ft2 | Number/Sqm |
| 10 | 0.2 | 1076 | 11600 |
| 20 | 1.0 | 270 | 2900 |
| 25 | 1.5 | 172 | 1850 |
| 38 | 4.5 | 74 | 800 |
| 45 | 7.0 | 53 | 570 |
| 50 | 8.0 | 43 | 465 |
| 55 | 10.5 | 35 | 380 |
| 70 | 16.0 | 22 | 235 |
| 100 | 40 | 10 | 116 |
| 150 | 100 | 4.8 | 51.5 |
Suitable material:
| Technical name | Commerical name | Abbreviation | Molecular formula |
| High Density Polyethylene | High Density Polyethylene | HDPE | (C2H4)n |
| Low Density Polyethylene | Low Density Polyethylene | LDPE | (C2H4)n |
| Poly(propene) | Poly(propene) | PP | (C2H6)n |
| Polytetrafluoroethylene | Teflon | PTFE | (CF2-CF2)n |
| Polyvinylidene fluoride | Kynar,Hylar,Sygef | PVDF | (C2H2F2)n |
Operation temperature:
| Material | Working Condition degree | Typlical application | Note |
| HDPE | 80 | Demineralised water and Chromic acid | For outdoor application |
| LDPE | 80 | Demineralised water and Chromic acid | For outdoor application |
| PVDF | 140 | Resistance to many agreesive material | For high temperature |
| PTFE | 250 | high temperature applications | For high temperature |
| PP | 110 | Metal treatment industry | Good corrosion assistance |
Different material Physical/mechanical/thermal/electric/magnetic properties:
| Name | PE ball | PP ball | PVDF ball | PTFE ball |
| Density.g/cm3 | 0.92 (L(,0.97(H) | 0.87 | 1.77 | 2.16 |
| Young's modulus | 250/950 | 1285 | 1900 | 670 |
| Friction coeffiicient | 0.38 | 0.30 | 0.32 | 0.12 |
| water absorption | 0.013 | 0.10 | 0.04 | 0.02 |
| Coefficient of linear thermal expansion | 150 | 135 | 130 | 145 |
| Volume resistrivity | >10‾15 | >10‾14 | >10‾14 | >10¯15 |
| Relative magnetic permeablity | <-1 | <-1 | <-1 | <-1 |
| Thermal conductivity | 0.32(L)/046(H) | 0.19 | 0.19 | 0.23 |
Mainly application:
| Name | Application |
| pp | Polypropylene ball are resisting into not concentrated acids,alkalis,alcohols,oils,grease and most inorganic compounds.Fair assistance in armatic hydrocarbons, they are not resistant in contact with halogens.They provide corrosive phenomena even in presence of concentrated acids and oxidizing agents at high temperature. |
| PE | Excellent corrosion resistance in contact with acids, alcohols,basis,esters,petrol,grease and oils.Fairish resistance to aliphatic and aromatic hydrocarbons,mineral, oils,oxidizing. |
| PVDF | Excellent corrosion resistance in contact with inorganic acids and salts,organic acids,alcohols,aliphatic and aromatic hydrocarbons,halogens except fluorines,oxidizing environments. They are not suitable against nearly pure strong acids and basis,liquid alcaline metals, strong polar solvents |
| PTFE | Teflon balls provide exceptional corrosion resistance properties,they are resisting even in contact with industrial acids or caustic substances. They suffer corrosive phenomeza only against molten alkaline metals and fluorides at elevated temperature. |
Product Show
