Galvanised Steel Material Cylinder Clevis Model G10x40
US$ 1 - 10
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
NTL
Material:
steel
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stainless Steel 316 Material Cylinder Clevis G10x40US$ 1 - 10MOQ: 10 Pieces -
Anxiety Desk Toy Fidget CubeUS$ 1 - 6MOQ: 100 Pieces
-
Whistle Shaped Aluminum Hand Spinner With R188 BearingUS$ 2.6 - 5MOQ: 100 Pieces
-
Alloy Colorful Fidget Spinner Rainbow Hand Spinner ToyUS$ 4.3 - 6MOQ: 100 Pieces
-
Rainbow Zinc Alloy Finger SpinnerUS$ 3.5 - 4MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
NTL
Material
steel

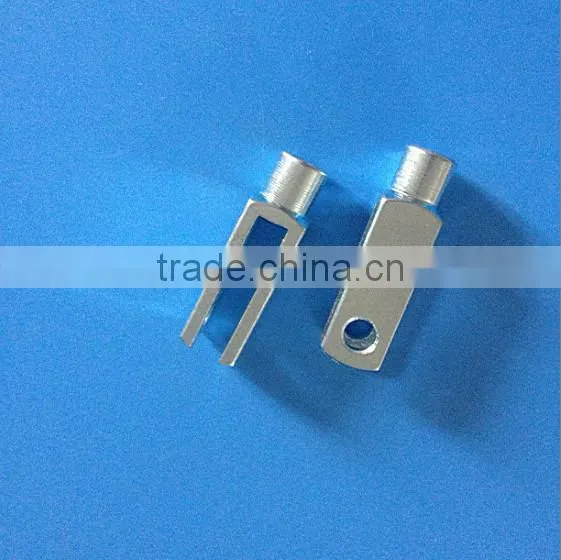

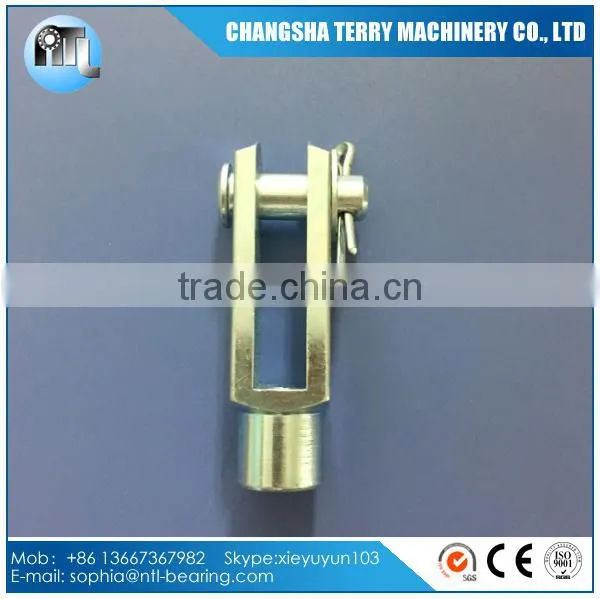

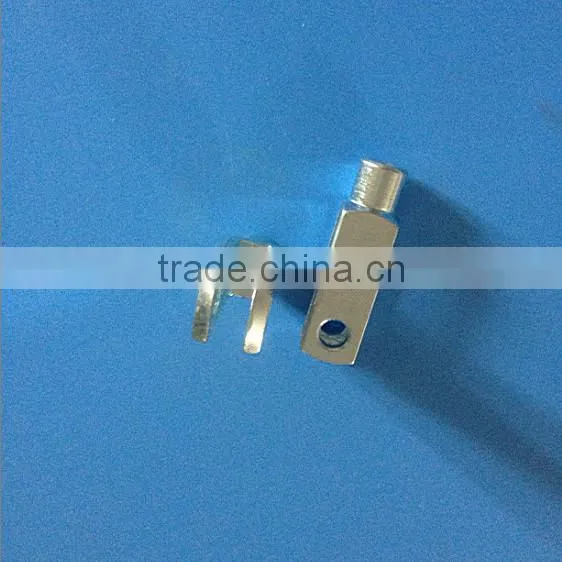

Galvanised steel material Cylinder Clevis model G10x40
In addition to standard clevises, there are also clevises with male threads.
These can be used wherever only female threads are available for fixing.
This product, so simple in appearance, also has a particular advantage.
These clevises, which can for instance be screwed to hydraulic and pneumatic cylinders, do not need, apart from a locking nut, additional mounting security such as threaded rods or adhesive.
| Item | d1 | g | a | b1 | b2 | d2 | d3 | f | l1 | l2 | l3 | r3 | Weight | |
| H9 | ±0.5 | h 11 | B 13 | ±0.3 | ±0.2 | ±0.5 | ±0.2 | kg ≈ | ||||||
| 0.3 | ||||||||||||||
| -0.16 | ||||||||||||||
| G 4x8 | 4 | 8 | 8 | 4 | B 13 | M 4x0.7 | 8 | 0.5 | 21 | 16 | ±0.3 | 6 | 0.5 | 0.005 |
| G 4x16 | 4 | 16 | 8 | 4 | M 4x0.7 | 8 | 0.5 | 29 | 24 | 6 | 0.5 | 0.007 | ||
| G 5x10 | 5 | 10 | 10 | 5 | M 5x0.8 | 9 | 0.5 | 26 | 20 | 7.5 | 0.5 | 0.009 | ||
| G 5x20 | 5 | 20 | 10 | 5 | M 5x0.8 | 9 | 0.5 | 36 | 30 | 7.5 | 0.5 | 0.0013 | ||
| G 6x12 | 6 | 12 | 12 | 6 | M 6x1 | 10 | 0.5 | 31 | 24 | 9 | 0.5 | 0.0015 | ||
| G 6x24 | 6 | 24 | 12 | 6 | M 6x1 | 10 | 0.5 | 43 | 36 | ±0.4 | 9 | 0.5 | 0.021 | |
| G 8x16 | 8 | 16 | 16 | 8 | M 8x1.25 | 14 | 0.5 | 42 | 32 | 12 | 0.5 | 0.037 | ||
| G 8x16FG | 8 | 16 | 16 | 8 | M 8x1 | 14 | 0.5 | 42 | 32 | 12 | 0.5 | 0.037 | ||
| G 8x32 | 8 | 32 | 16 | 8 | M 8x1.25 | 14 | 0.5 | 58 | 48 | 12 | 0.5 | 0.054 | ||
| G 8x32FG | 8 | 32 | 16 | 8 | M 8x1 | 14 | 0.5 | 58 | 48 | 12 | 0.5 | 0.054 | ||
| G 10x20 | 10 | 20 | 20 | 10 | M 10x1.5 | 18 | 0.5 | 52 | 40 | 15 | 0.5 | 0.074 | ||
| G 10x20FG | 10 | 20 | 20 | 10 | M 10x1.25 | 18 | 0.5 | 52 | 40 | 15 | 0.5 | 0.074 | ||
| G 10x40 | 10 | 40 | 20 | 10 | 0.7 | M 10x1.5 | 18 | 0.5 | 72 | 60 | 15 | 0.5 | 0.116 | |
| G 10x40FG | 10 | 40 | 20 | 10 | 0.15 | M 10x1.25 | 18 | 0.5 | 72 | 60 | 15 | 0.5 | 0.116 | |
| G 12x24 | 12 | 24 | 24 | 12 | M 12x1.75 | 20 | 0.5 | 62 | 48 | 18 | 0.5 | 0.121 | ||
| G 12x24FG | 12 | 24 | 24 | 12 | M 12x1.25 | 20 | 0.5 | 62 | 48 | 18 | 0.5 | 0.121 | ||
| G 12x48 | 12 | 48 | 24 | 12 | M 12x1.75 | 20 | 0.5 | 86 | 72 | 18 | 0.5 | 0.175 | ||
| G 12x48FG | 12 | 48 | 24 | 12 | M 12x1.25 | 20 | 0.5 | 85 | 72 | 18 | 0.5 | 0.175 | ||
| G 14x28 | 14 | 28 | 27 | 14 | M 14x2 | 24 | 1 | 72 | 56 | 22.5 | 1 | 0.178 | ||
| G 14x28FG | 14 | 28 | 27 | 14 | M 14x1.5 | 24 | 1 | 72 | 56 | 22.5 | 1 | 0.178 | ||
| G 14x56 | 14 | 56 | 27 | 14 | M 14x2 | 24 | 1 | 101 | 85 | 22.5 | 1 | 0.258 | ||
| G 14x56FG | 14 | 56 | 27 | 14 | M 14x1.5 | 24 | 1 | 101 | 85 | 22.5 | 1 | 0.258 | ||
| G 16x32 | 16 | 32 | 32 | 16 | M 16x2 | 26 | 1 | 83 | 64 | 24 | 1 | 0.282 | ||
| G 16x32FG | 16 | 32 | 32 | 16 | M 16x1.5 | 26 | 1 | 83 | 64 | 24 | 1 | 0.282 | ||
| G 16x64 | 16 | 64 | 32 | 16 | M 16x2 | 26 | 1 | 115 | 96 | 24 | 1 | 0.411 | ||
| G 16x64FG | 16 | 64 | 32 | 16 | M 16x1.5 | 26 | 1 | 115 | 96 | 24 | 1 | 0.411 | ||
| G 18x36 | 18 | 36 | 36 | 18 | M 18x2.5 | 30 | 1 | 94 | 72 | 27 | 1.5 | 0.39 | ||
| G 18x36FG | 18 | 36 | 36 | 18 | M 18x1.5 | 30 | 1 | 94 | 72 | 27 | 1.5 | 0.39 | ||
| G 20x40 | 20 | 40 | 40 | 20 | M 20x2.5 | 34 | 1 | 105 | 80 | 30 | 1.5 | 0.55 | ||
| G 20x40FG | 20 | 40 | 40 | 20 | M 20x1.5 | 34 | 1 | 105 | 80 | 30 | 1.5 | 0.55 | ||
| G 20x80 | 20 | 80 | 40 | 20 | M 20x2.5 | 34 | 1 | 145 | 120 | 30 | 1.5 | 0.8 | ||
| G 20x80FG | 20 | 80 | 40 | 20 | M 20x1.5 | 34 | 1 | 145 | 120 | 30 | 1.5 | 0.8 | ||
| G 25x50 | 25 | 50 | 50 | 25 | M 24x3 | 42 | 1.5 | 132 | 100 | 36 | 1.5 | 1.1 | ||
| G 25x50FG | 25 | 50 | 50 | 25 | M 24x2 | 42 | 1.5 | 132 | 100 | 36 | 1.5 | 1.1 | ||
| G 28x56 | 28 | 56 | 55 | 28 | M 27x3 | 48 | 1.5 | 148 | 112 | 40 | 2 | 1.5 | ||
| G 28x56FG | 28 | 56 | 55 | 28 | M 27x2 | 48 | 1.5 | 148 | 112 | 40 | 2 | 1.5 | ||
| G 30x54FG | 30 | 56 | 55 | 30 | M 27x2 | 48 | 1.5 | 148 | 112 | 40 | 2 | 1.44 | ||
| G 30x60 | 30 | 60 | 60 | 30 | M 30x3.5 | 52 | 1.5 | 160 | 120 | 42 | 2 | 1.97 | ||
| G 30x60FG | 30 | 60 | 60 | 30 | M 30x2 | 52 | 1.5 | 160 | 120 | 42 | 2 | 1.97 | ||
| G 35x54FG | 35 | 54 | 70 | 35 | M 36x2 | 60 | 2 | 188 | 144 | 54 | 3 | 2.93 | ||
| G 35x72 | 35 | 72 | 70 | 35 | M 36x4 | 60 | 2 | 188 | 144 | 54 | 3 | 2.93 | ||
| G 35x72FG | 35 | 72 | 70 | 35 | M 36x2 | 60 | 2 | 188 | 144 | 54 | 3 | 2.93 | ||
| G 36x72 | 35 | 72 | 70 | 35 | M 36x4 | 60 | 2 | 188 | 144 | 54 | 3 | 2.93 | ||
| G 36x72FG | 35 | 72 | 70 | 35 | M 36x2 | 60 | 2 | 188 | 144 | 54 | 3 | 2.93 | ||
| G 40x84FG | 40 | 84 | 85 | 40 | M 42x2 | 70 | 3 | 232 | 168 | 63.5 | 5 | 5.64 | ||
| G 42x84 | 42 | 84 | 85 | 42 | M 42x4.5 | 70 | 3 | 232 | 168 | 63.5 | 5 | 5.34 | ||
| G 42x84FG | 42 | 84 | 85 | 42 | M 42x2 | 70 | 3 | 232 | 168 | 63.5 | 5 | 5.34 | ||
| G 50x96 | 50 | 96 | 96 | 50 | M 48x5 | 83 | 3 | 265 | 192 | 73 | 5 | 7.86 | ||
| G 50x96FG | 50 | 96 | 96 | 50 | M 48x2 | 83 | 3 | 265 | 193 | 73 | 5 | 7.86 |
If you need,just feel free to contact with us.
