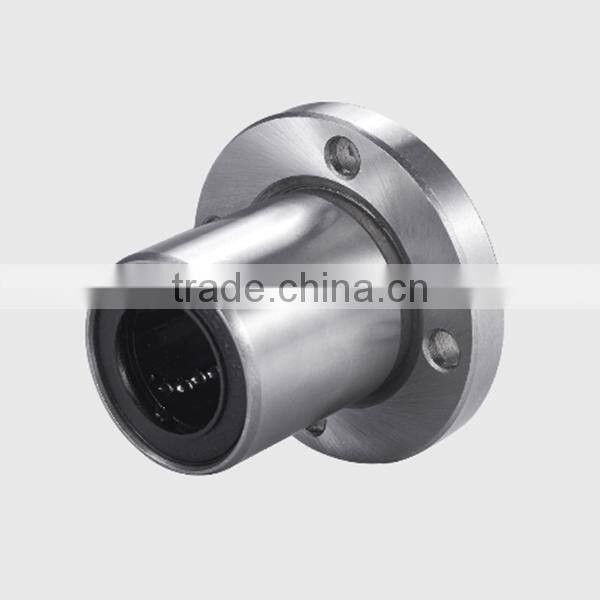

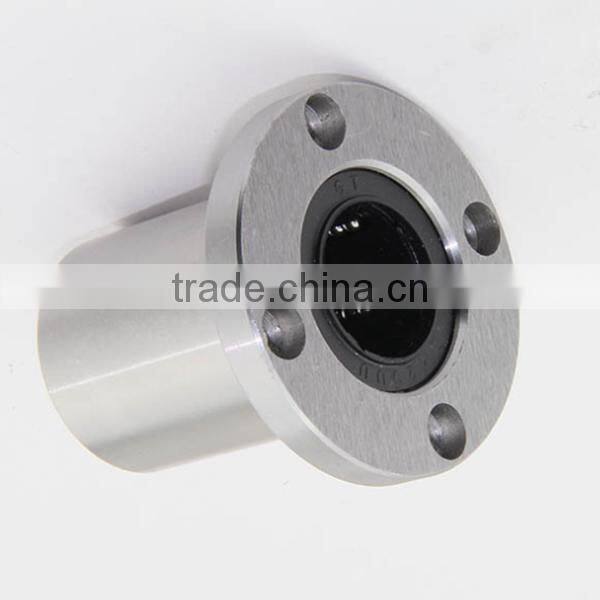

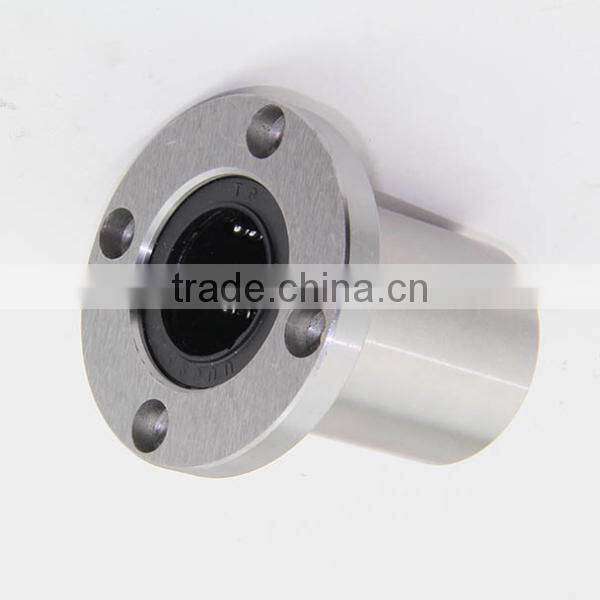

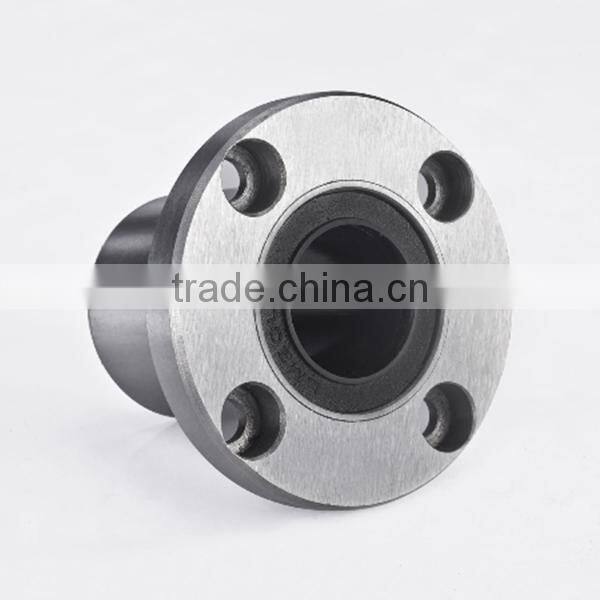

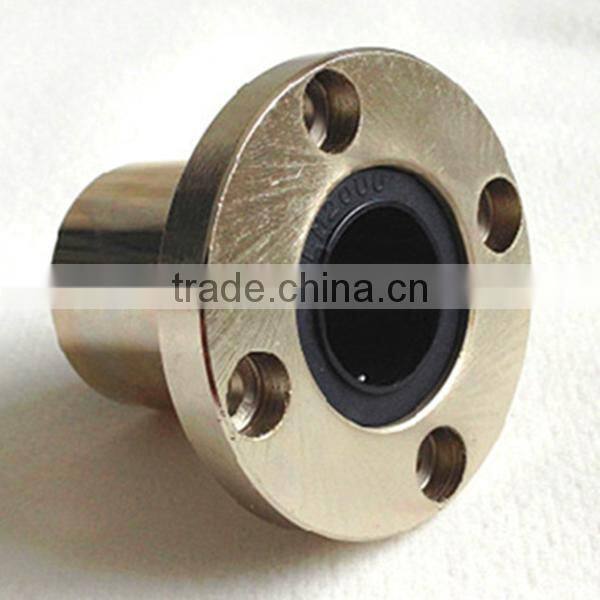

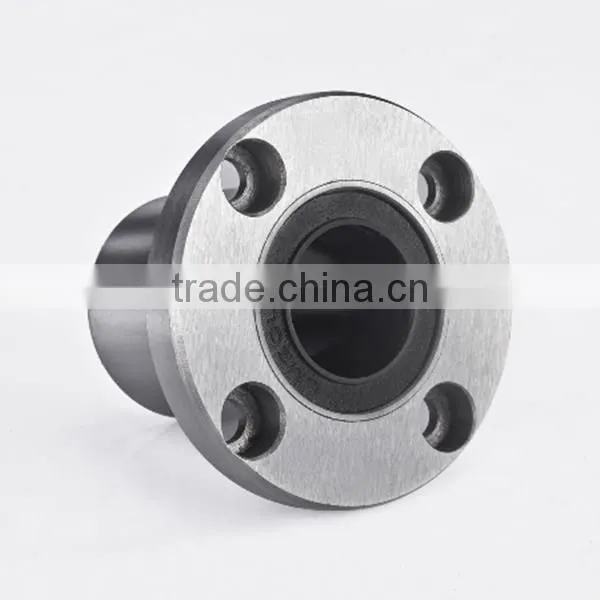

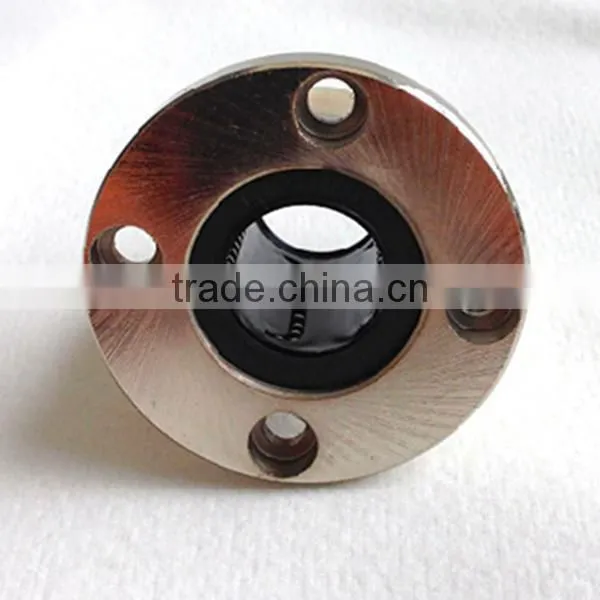

flange linear motion bearing LMF6UU
Application of flange linear motion bearing:
-flange linear motion bearings are widely used in precision equipments, like electronic equipment, tension tester, etc.
-flange linear motion bearings are also widely used in automatic cutting machine, printer, card sorting machine, etc.
Complete types of the products
Products range includes LM…UU,LM…LUU,LME…UU,LME…LUU,LMB…UU,LMF…
UU,LMK…UU,LMH…UU,LMEF…UU,LMEK…UU,KH…,LMF…LUU,LMK…LUU,LMH…
LUU,LMEF…UU,LMEK…UU series and so on.
| Flange Type | Ball rows | Weight g | Allow tolerance | Basic Load | Inside Diameter mm | Outer Diameter mm | Length L mm | |||
| Circular | Square | Oval | Dynamic | Static | ||||||
| LMF 6UU | LMK 6UU | LMH 6UU | 4 | 26.5 | -5 | 200 | 260 | 6 | 12 | 19 |
| LMF 8SUU | LMK 8SUU | 4 | 34 | -5 | 170 | 220 | 8 | 15 | 17 | |
| LMF 8UU | LMK 8UU | LMH 8UU | 4 | 40 | -5 | 260 | 400 | 8 | 15 | 24 |
| LMF 10UU | LMK 10UU | LMH 10UU | 4 | 78 | -5 | 370 | 540 | 10 | 19 | 29 |
| LMF 12UU | LMFK12UU | LMFH12UU | 4 | 76 | -5 | 410 | 590 | 12 | 21 | 30 |
| LMF 13UU | LMK 13UU | LMH 13UU | 4 | 94 | -7 | 500 | 770 | 13 | 23 | 32 |
| LMF 16UU | LMK 16UU | LMH 16UU | 5 | 134 | -7 | 770 | 1170 | 16 | 28 | 37 |
| LMF 20UU | LMK 20UU | LMH 20UU | 5 | 180 | -9 | 860 | 1370 | 20 | 32 | 42 |
| LMF 25UU | LMK 25UU | LMH 25UU | 6 | 340 | -9 | 980 | 1560 | 25 | 40 | 59 |
| LMF 30UU | LMK 30UU | LMH 30UU | 6 | 460 | -9 | 1560 | 2740 | 30 | 45 | 64 |
| LMF 35UU | LMK 35UU | 6 | 795 | -13 | 1660 | 3130 | 35 | 52 | 70 | |
| LMF 40UU | LMK 40UU | 6 | 1054 | -13 | 2150 | 4010 | 40 | 60 | 80 | |
| LMF 50UU | LMK 50UU | 6 | 2200 | -13 | 3820 | 7930 | 50 | 80 | 100 | |
| LMF 60UU | LMK 60UU | 6 | 2960 | -16 | 4700 | 9990 | 60 | 90 | 110 | |
| LMF 80UU | LMK 80UU | 6 | 5800 | -20 | 7350 | 16000 | 80 | 120 | 140 | |
| LMF 100UU | LMK 100UU | 6 | 10600 | -30 | 14100 | 34800 | 100 | 150 | 175 | |
