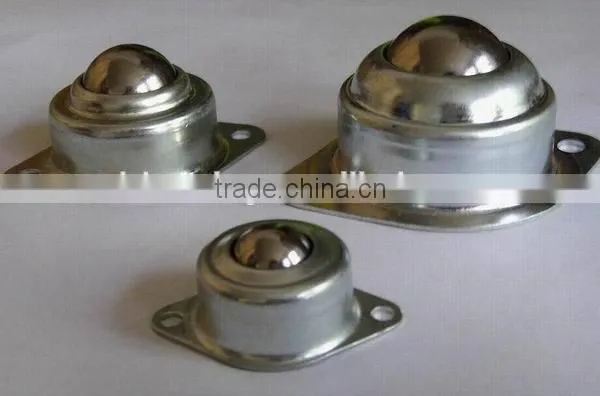

Ball transfer unit - CY series
- 50000 Piece / Pieces per Month
- shanghai
- T/T Credit Card
Product Details
Brand Name: | NTL | Model Number: | CY SP |
Product Description
Specifications
ball transfer unit1. high quality material
2. apply for vacuum equipment
3. good anti-corrosive
Plastic ball transfer unit SP30
We supply a lots of high quality ball transfer unit . stainless steel ones,ceramic ones available
Model No. | Ball size | Loading capacityMaximum/Breaking |
SP-8 | 8MM | 8KG/15KG |
SP-12 | 12MM | 25KG/30KG |
SP-15 | 15.875MM | 40KG/50KG |
SP-22 | 22.23MM | 140KG/160KG |
SP-25 | 25.4MM | 180KG/200KG |
SP-30 | 30.16MM | 250KG/300KG |
SP-45 | 45MM | 450KG/500KG |
SP-60 | 60MM | 800KG/1200KG |
SP-76 | 76MM | 2000KG/2500KG |
SP-90 | 90MM | 3000KG/3500KG |
|
|
|
SP-8FL | 8MM | 8KG/15KG |
SP-15FL | 15.875MM | 40KG/45KG |
SP-22FL | 22.23MM | 140KG/160KG |
SP-30FL | 30.16MM | 200KG/230KG |
SP-45FL | 45MM | 400KG/450KG |
Ball transfer units are omni-directional load-bearing spherical balls mounted inside a restraining fixture. They are identical in principle to a ball computer mouse upside-down, or a trackball, except there is an array of them side-by-side.
Typically the design involves a single large ball supported by smaller ball bearings.They are commonly used in an inverted ball up position where objects are quickly moved across an array of units, known as a ball transfer table, a type of conveyor system. This permits manual transfer to and from machines and between different sections of another conveyor system.
They are used in airports for luggage delivery, or in industry as part of manufacturing systems. Prior to the invention of the ball transfer unit, first patented by Autoset Production Ltd in 1958, these applications were solved by the use of inverted casters.However, casters recognize a trail, meaning that the wheels had to align before directional change could be achieved.Ball transfer units can also be used non-inverted ball down position as a type of caster, however this use is restricted by load-bearing limitations and the type of floor.
Manufacturers have addressed this problem with ball transfer units incorporating re-circulating ball principles, however the inverted position is still the most common application and the least problematic.
Company Profile
Changsha Terry Machinery Co., Ltd. is located in Changsha. Our company enjoys convenient transportation and advanced economy.
We have been exporting bearings for 8 years. Our main products are Needle Roller bearings, Cylindrical Roller Bearings, Rod end Bearings, Spherical plain bearings, Track roller Bearings for Guideway, Roller Bearings, Combine Bearings for forklifts, Water Pump Bearings, SNR Auto Bearings and all kinds of Spherical Bearings. We have exported our products to Korea, Iran, Turkey, Bulgaria, Romania, Russia, Italy, Norway, the USA, Canada, etc. We offer OEM service. Our products are applied in many fields.
Our Advantages
Products
Big volume in Stock, No MOQ required
We comply with all the international standards, such as ISO9001 and TS16949 standards.
Personnel
Our sales persons are well trained to accommodate your requests and speak English for your convenience.
Our technicians and engineers have 23 years of Experience in the Bearing Industry.
Service & Quality control
We supply detailed drawings and offer whenever necessary.
We inspect every piece of bearing by ourselves before delivery.
