Home > Products > Slewing bearing &cross roller bearing > 013.25.355 Single row four point contact ball slewing bearing for crane

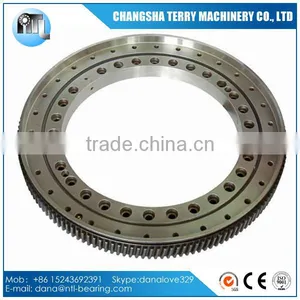

013.25.355 Single row four point contact ball slewing bearing for crane
- 100 Piece / Pieces per Month
- Shanghai
- T/T
Product Details
Brand Name: | NTL | Bore Size: | 528, | Outside Diameter: | 732, |
Model Number: | 013.25.355 | Feature: | Four Point Contact | Gear Options: | Internal Gear Only |
Seals Type: | NBR |
Product Description
Four point contact ball slewing bearing
The single-row four point contact ball slewing ring is composed of 2 seat-rings.It features compact in design,and light in weight.The balls contact with the circular race at four points,via which the axial force,radial force and resultant moment may be born simultaneously.
It may be used for slewing conveyers,welding arm and positioner,light,medium duty cranes,excavators and other engineering machines.
Materials of rings and rolling parts
Generally, NTL use carbon-chromium bearing steel GCr15SiMn or GCr15 for rolling parts and surface-haredned steel 50Mn, 42CrMo, 5CrMnMo for the rings.
Material of cages
The cages for NTL slewing bearings include integral cage, segment cage and spacer-type cage. We use 20# steel or ZL102 birmasil for integral and segment cages, PA 1010 resin or ZL102 birmasil or QA110-3-105 albronze for spacer-type cages. In recent years with continuous development of material industry , nylon GRPA55.25 started to be applied for segment cages.
Material of seals
Generally, NTL use NBR or VITON for seals. But there still very few slewing bearings NTL manufactured in early period sealing with felted wool.

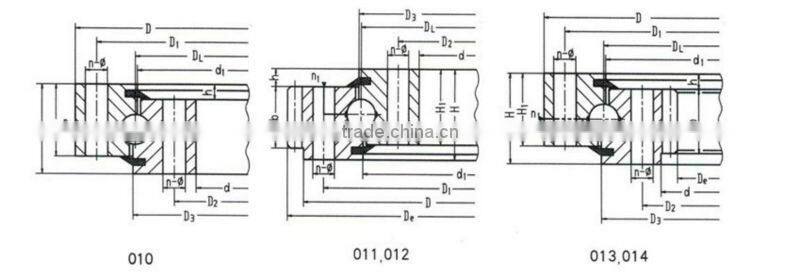

Basic type | Configuration size | Mounting | Structural size | Gear Data | Ext Gear | Int Gear | Tangential Tooth lood | Weight | |||||||||||||||||
Toothless | Ext Toothing | Int Toothing DL mm | D | d | H | D1 | D2 | n | ¦µ | n1 | D3 | d1 | H1 | h | b | x | m | De | Z | De | Z | Norm -aliz -ing | temp -eri -ng | ||
1 | 010.20.200 | 011.20.200 | _ | 280 | 120 | 60 | 248 | 152 | 12 | 16 | 2 | 201 | 199 | 50 | 10 | 40 | 0 | 3 | 300 | 98 | _ | _ | _ | _ | _ |
2 | 010.20.224 | 011.20.224 | _ | 304 | 144 | 60 | 272 | 176 | 12 | 16 | 2 | 225 | 223 | 50 | 10 | 40 | 0 | 3 | 312 | 105 | _ | _ | _ | _ | _ |
3 | 010.20.250 | 011.20.250 | _ | 330 | 170 | 60 | 298 | 202 | 18 | 16 | 2 | 251 | 249 | 50 | 10 | 40 | 0 | 4 | 352 | 86 | _ | _ | _ | _ | _ |
4 | 010.20.280 | 011.20.280 | _ | 360 | 200 | 60 | 328 | 232 | 18 | 16 | 2 | 281 | 279 | 50 | 10 | 40 | 0 | 4 | 384 | 94 | _ | _ | _ | _ | _ |
5 | 010.25.315 | 011.25.315 | 013.25.315 | 408 | 222 | 70 | 372 | 258 | 20 | 18 | 2 | 316 | 314 | 60 | 10 | 50 | 0 | 5 | 435 | 85 | 190 | 40 | _ | _ | _ |
6 | 010.25.355 | 011.25.355 | 013.25.355 | 448 | 262 | 70 | 412 | 298 | 20 | 18 | 2 | 356 | 354 | 60 | 10 | 50 | 0 | 5 | 475 | 93 | 235 | 49 | _ | _ | _ |
7 | 010.25.400 | 011.25.400 | 013.25.400 | 493 | 307 | 70 | 457 | 343 | 24 | 18 | 2 | 401 | 399 | 60 | 10 | 50 | 0 | 6 | 528 | 86 | 276 | 48 | _ | _ | _ |
8 | 010.25.450 | 011.25.450 | 013.25.450 | 543 | 357 | 70 | 507 | 393 | 24 | 18 | 2 | 451 | 449 | 100 | 10 | 50 | 0 | 6 | 576 | 94 | 324 | 56 | _ | _ | _ |
9 | 010.30.500 | 011.30.500 | 013.30.500 | 602 | 398 | 80 | 566 | 434 | 20 | 18 | 4 | 501 | 498 | 70 | 10 | 60 | +0.5 | 5 | 629 | 123 | 367 | 74 | 3.7 | 5.2 | 85 |
012.30.500 | 014.30.500 | 6 | 628.8 | 102 | 368.4 | 62 | 4.5 | 6.2 | |||||||||||||||||
9' | 010.25.500 | 011.25.500 | 013.25.500 | 602 | 398 | 80 | 566 | 434 | 20 | 18 | 4 | 501 | 499 | 70 | 10 | 60 | +0.5 | 5 | 629 | 123 | 367 | 74 | 3.7 | 5.2 | 85 |
012.25.500 | 014.25.500 | 6 | 628.8 | 102 | 368.4 | 62 | 4.5 | 6.2 | |||||||||||||||||
10 | 010.30.560 | 011.30.560 | 013.30.560 | 662 | 458 | 80 | 626 | 494 | 20 | 18 | 4 | 561 | 558 | 70 | 10 | 60 | +0.5 | 5 | 689 | 135 | 427 | 86 | 3.7 | 5.2 | 95 |
012.30.560 | 014.30.560 | 6 | 688.8 | 112 | 428.4 | 72 | 4.5 | 6.2 | |||||||||||||||||
10' | 010.25.560 | 011.25.560 | 013.25.560 | 662 | 458 | 80 | 626 | 494 | 20 | 18 | 4 | 561 | 559 | 70 | 10 | 60 | +0.5 | 5 | 689 | 135 | 427 | 86 | 3.7 | 5.2 | 95 |
012.25.560 | 014.25.560 | 6 | 688.8 | 112 | 428.4 | 72 | 4.5 | 6.2 | |||||||||||||||||
11 | 010.30.630 | 011.30.630 | 013.30.630 | 732 | 528 | 80 | 696 | 564 | 24 | 18 | 4 | 631 | 628 | 70 | 10 | 60 | +0.5 | 6 | 772.8 | 126 | 494 | 83 | 4.5 | 6.2 | 110 |
012.30.630 | 014.30.630 | 8 | 774 | 94 | 491 | 62 | 6.0 | 8.3 | |||||||||||||||||
11' | 010.25.630 | 011.25.630 | 013.25.630 | 732 | 528 | 80 | 696 | 564 | 24 | 18 | 4 | 631 | 629 | 70 | 10 | 60 | +0.5 | 6 | 772 | 126 | 494 | 83 | 4.5 | 6.2 | 110 |
012.25.630 | 014.25.630 | 8 | 774 | 94 | 491 | 62 | 6.0 | 8.3 | |||||||||||||||||
12 | 010.30.710 | 011.30.710 | 013.30.710 | 812 | 608 | 80 | 776 | 644 | 24 | 18 | 4 | 711 | 708 | 70 | 10 | 60 | +0.5 | 6 | 850 | 139 | 572 | 96 | 4.5 | 6.2 | 120 |
012.30.710 | 014.30.710 | 8 | 854 | 104 | 571 | 72 | 6.0 | 8.3 | |||||||||||||||||
12' | 010.25.710 | 011.25.710 | 013.25.710 | 812 | 608 | 80 | 776 | 644 | 24 | 18 | 4 | 711 | 709 | 70 | 10 | 60 | +0.5 | 6 | 850 | 139 | 572 | 96 | 4.5 | 6.2 | 120 |
012.25.710 | 014.25.710 | 8 | 854 | 104 | 571 | 72 | 6.0 | 8.9 | |||||||||||||||||
13 | 010.40.800 | 011.40.800 | 013.40.800 | 922 | 678 | 100 | 878 | 722 | 30 | 22 | 6 | 801 | 798 | 90 | 10 | 80 | +0.5 | 8 | 966 | 118 | 635 | 80 | 8.0 | 11. | 220 |
012.40.800 | 014.40.800 | 10 | 968 | 94 | 634 | 64 | 10. | 14. | |||||||||||||||||
13' | 010.30.800 | 011.30.800 | 013.30.800 | 922 | 678 | 100 | 878 | 722 | 30 | 22 | 6 | 801 | 798 | 90 | 10 | 80 | +0.5 | 8 | 966 | 118 | 635 | 80 | 8.0 | 11. | 220 |
012.30.800 | 014.30.800 | 10 | 968 | 94 | 634 | 64 | 10.0 | 14. | |||||||||||||||||
14 | 010.40.900 | 011.40.900 | 013.40.900 | 1022 | 778 | 100 | 978 | 822 | 30 | 22 | 6 | 901 | 898 | 90 | 10 | 80 | +0.5 | 8 | 1062.4 | 130 | 739.2 | 93 | 8.0 | 11. | 240 |
012.40.900 | 014.40.900 | 10 | 1068 | 104 | 734 | 74 | 10.0 | 14. | |||||||||||||||||
14' | 010.30.900 | 011.30.900 | 013.30.900 | 1022 | 778 | 100 | 978 | 822 | 30 | 22 | 6 | 901 | 898 | 90 | 10 | 80 | +0.5 | 8 | 1062.4 | 130 | 739.2 | 93 | 8.0 | 11.1 | 240 |
012.30.900 | 014.30.900 | 10 | 1068 | 104 | 734 | 74 | 10.0 | 14.0 | |||||||||||||||||
15 | 010.40.1000 | 011.40.1000 | 013.40.1000 | 1122 | 878 | 100 | 1078 | 922 | 36 | 22 | 6 | 1001 | 998 | 90 | 10 | 80 | +0.5 | 10 | 1188 | 116 | 824 | 83 | 10.0 | 14.0 | 270 |
012.40.1000 | 014.40.1000 | 12 | 1185.6 | 96 | 820.8 | 69 | 12.0 | 16.7 |
