Brand Name
NTL
Bore Size
50, 1000
Outside Diameter
200, 2000
Model Number
YRT

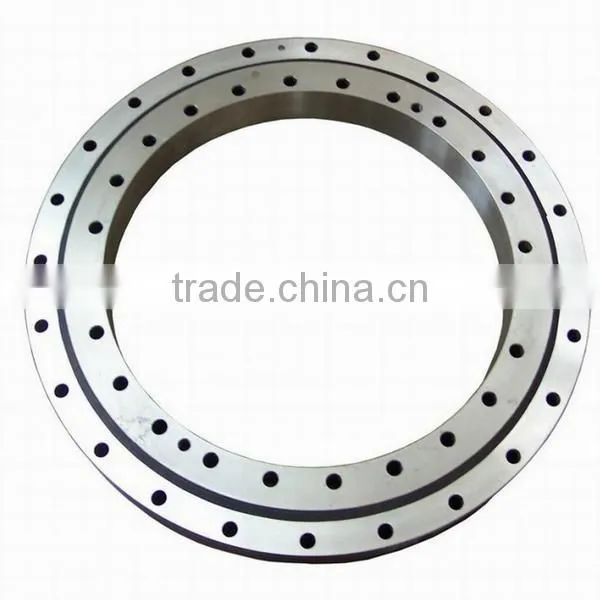

Rotary table bearing / turntable bearing
YRT precision rotary table bearing is a kind of bearing fixed by a bidirectional thrust bearing and a centripetal-guided bearing. They can support radial loads, axial loads from both directions and tilting moments free from clearance and are particularly suitable for bearing arrangements with high requirements for running accuracy,like rotary tables, millings heads and reversible clamps.Due to the fixing holes in the bearing rings, the units are very easy to fit.
| bearing type | boundary dimensions | Basic load rating | ||||||||||
| d | D | H | H1 | C | D1 | J | J1 | axial | radial | |||
| unit: mm | dynamic load | static load | dynamic load | static load | ||||||||
| YRT50 | 50 | 126 | 30 | 20 | 10 | 105 | 63 | 116 | 38 | 158 | 28.5 | 49.5 |
| YRT80 | 80 | 146 | 35 | 23.35 | 12 | 130 | 92 | 138 | 56 | 255 | 42.5 | 100 |
| YRT100 | 100 | 185 | 38 | 25 | 12 | 160 | 112 | 170 | 76.5 | 415 | 47.5 | 120 |
| YRT120 | 120 | 210 | 40 | 26 | 12 | 184 | 135 | 195 | 102 | 540 | 52 | 143 |
| YRT150 | 150 | 240 | 40 | 26 | 12 | 214 | 165 | 225 | 112 | 630 | 56 | 170 |
| YRT180 | 180 | 280 | 43 | 29 | 15 | 244 | 194 | 260 | 118 | 710 | 69.5 | 200 |
| YRT200 | 200 | 300 | 45 | 30 | 15 | 274 | 215 | 285 | 120 | 765 | 81.5 | 220 |
| YRT260 | 260 | 385 | 55 | 36.5 | 18 | 345 | 280 | 365 | 160 | 1060 | 93 | 290 |
| YRT325 | 325 | 450 | 60 | 40 | 20 | 415 | 342 | 430 | 275 | 1930 | 120 | 345 |
| YRT395 | 395 | 525 | 65 | 42.5 | 20 | 486 | 415 | 505 | 300 | 2280 | 186 | 655 |
| YRT650 | 650 | 870 | 122 | 78 | 34 | 800 | 680 | 830 | 1040 | 8000 | 490 | 1800 |
| YRT850 | 850 | 1095 | 124 | 80.5 | 37 | 1018 | 890 | 1055 | 1000 | 8650 | 455 | 1730 |
| YRT950 | 950 | 1200 | 132 | 86 | 40 | 1130 | 990 | 1160 | 1290 | 11400 | 530 | 2040 |
| YRT1030 | 1030 | 1300 | 145 | 92.5 | 40 | 1215 | 1075 | 1255 | 1380 | 12000 | 620 | 2650 |
