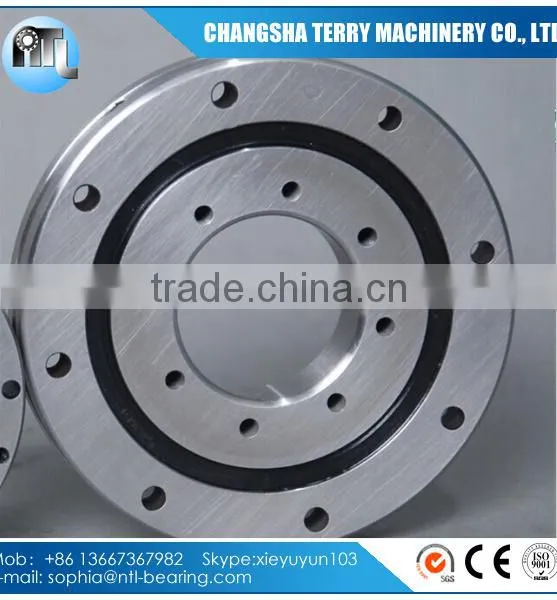

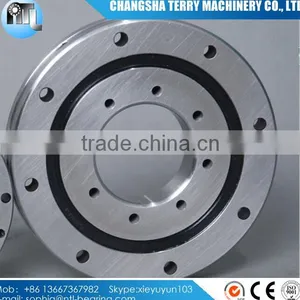

XRU5515 RU85 CRBF5515AT THK cross roller slewing ring bearing
Their rollers between the inner ring and the outer ring, the interval to intersect at right angles to each other are arranged. They can withstand the load from all directions (eg axial thrust load or momentum, etc.). Because the surface of the roller and the track into a linear contact and therefore, the bearing load and by the possibility of elastic deformation is small. This type of bearings are widely used in industrial automation, such as robots, machine tools and medical facilities, and need high rigidity, high speed close and still ensure accurate the occasion.
Application
It can be used for construction equiment including rotary transporter, welding machine small/medium sized crane and excavators.
| model number | Main dimension | Shoulder height | Basic load rating(radial) | weight | |||||||
| inner ring d | outer ring D | Roller pitch circle diameter dp | width B | Greasing hole d1 | r | ds | Dh | C | Co | kg | |
| kN | kN | ||||||||||
| RU42 | 20 | 70 | 41.5 | 12 | 3.1 | 0.6 | 37 | 47 | 7.35 | 8.35 | 0.62 |
| RU66 | 35 | 95 | 66 | 15 | 3.1 | 0.6 | 59 | 74 | 17.5 | 22.3 | 0.62 |
| RU85 | 55 | 120 | 85 | 15 | 3.1 | 0.6 | 79 | 93 | 20.3 | 29.5 | 1 |
| RU124(G) | 80 | 165 | 124 | 22 | 3.1 | 1 | 114 | 134 | 33.1 | 50.9 | 2.6 |
| RU124X | |||||||||||
| RU148(G) | 90 | 210 | 147.5 | 25 | 3.1 | 1.5 | 133 | 162 | 49.1 | 76.8 | 4.9 |
| RU148(X) | |||||||||||
| RU178(G) | 115 | 240 | 178 | 28 | 3.1 | 1.5 | 161 | 195 | 80.3 | 135 | 6.8 |
| RU178(G) | |||||||||||
| RU228(G) | 160 | 295 | 227.5 | 35 | 6 | 2 | 208 | 246 | 104 | 172 | 11.4 |
| RU228(X) | |||||||||||
| RU297(G) | 210 | 380 | 297.3 | 40 | 6 | 2.5 | 272 | 320 | 156 | 281 | 21.3 |
| RU297(X) | |||||||||||
| RU445(G) | 350 | 540 | 445.4 | 45 | 6 | 2.5 | 417 | 473 | 222 | 473 | 35.4 |
THK Cross Roller Bearing RU85UUCCO 55mm ID 120mm OD 15mm Width
Their rollers between the inner ring and the outer ring, the interval to intersect at right angles to each other are arranged. They can withstand the load from all directions (eg axial thrust load or momentum, etc.). Because the surface of the roller and the track into a linear contact and therefore, the bearing load and by the possibility of elastic deformation is small. This type of bearings are widely used in industrial automation, such as robots, machine tools and medical facilities, and need high rigidity, high speed close and still ensure accurate the occasion.
Application
It can be used for construction equiment including rotary transporter, welding machine small/medium sized crane and excavators.
| model number | Main dimension | Shoulder height | Basic load rating(radial) | weight | |||||||
| inner ring d | outer ring D | Roller pitch circle diameter dp | width B | Greasing hole d1 | r | ds | Dh | C | Co | kg | |
| kN | kN | ||||||||||
| RU42 | 20 | 70 | 41.5 | 12 | 3.1 | 0.6 | 37 | 47 | 7.35 | 8.35 | 0.62 |
| RU66 | 35 | 95 | 66 | 15 | 3.1 | 0.6 | 59 | 74 | 17.5 | 22.3 | 0.62 |
| RU85 | 55 | 120 | 85 | 15 | 3.1 | 0.6 | 79 | 93 | 20.3 | 29.5 | 1 |
| RU124(G) | 80 | 165 | 124 | 22 | 3.1 | 1 | 114 | 134 | 33.1 | 50.9 | 2.6 |
| RU124X | |||||||||||
| RU148(G) | 90 | 210 | 147.5 | 25 | 3.1 | 1.5 | 133 | 162 | 49.1 | 76.8 | 4.9 |
| RU148(X) | |||||||||||
| RU178(G) | 115 | 240 | 178 | 28 | 3.1 | 1.5 | 161 | 195 | 80.3 | 135 | 6.8 |
| RU178(G) | |||||||||||
| RU228(G) | 160 | 295 | 227.5 | 35 | 6 | 2 | 208 | 246 | 104 | 172 | 11.4 |
| RU228(X) | |||||||||||
| RU297(G) | 210 | 380 | 297.3 | 40 | 6 | 2.5 | 272 | 320 | 156 | 281 | 21.3 |
| RU297(X) | |||||||||||
| RU445(G) | 350 | 540 | 445.4 | 45 | 6 | 2.5 | 417 | 473 | 222 | 473 | 35.4 |
