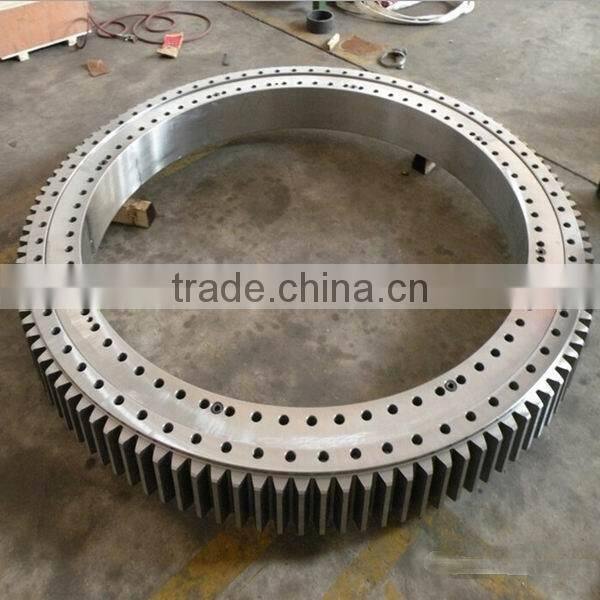

High Precision Slewing Ring Bearing With Outer Gear 011.25.630

Changsha Terry Machinery Co., Ltd. Gold Verified Supplier
5Yrs
High Precision Slewing Ring Bearing With Outer Gear 011.25.630 thumbnail-1
High Precision Slewing Ring Bearing With Outer Gear 011.25.630 photo-1
US$ 500 - 800 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ntl
Bore Size:
528,
Outside Diameter:
732,
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ntl
Bore Size 528,
Outside Diameter 732,
Model Number 011.25.630
Gear Options External Gear Only
Seals Type Open
Place of Origin Henan, China





Slewing ring bearing(slewing ring),is a bearing that able to bear a large axial load,radial and overturning torque.Slewing bearings are generally accompanied with installing holes,inner gear,outside gear,lubricating hole and sealing device,which enable mainframe structure compact in design,guide reliable,and easy to maintain.



Slewing bearings are combination structure including non-gear,outside gear and four point contact ball bearings,double angular contact ball bearings.cross-cylindrical roller bearing and three rows cylindrical roller bearings and so on.In which,four point contact ball bearings have higher static load capacity,while corss-cylindrical roller bearings have higher dynamic load capacity.



Slewing bearing widely used in lifting machinery.excavate machinery,construction machinery,port machinery,ships machinery,as well as precision radar launchers and large rotary devices such as missile launcher.



Basic typeConfiguration sizeWeight (kg)
Ext toothDmmd mmH mm
011.20.2002801206019
011.20.2243041446021
011.20.2503301706023
011.20.2803602006026
011.25.3154082227041
011.25.3554482627046
011.25.4004933077054
011.25.4505433577060
011.25.500/011.30.500 012.25.500/012.30.5006023988085
011.25.560/011.30.560 012.25.560/012.30.5606624588095
011.25.630/011.30.630 012.25.630/012.30.63073252880110
011.25.670/011.30.670 012.25.670/012.30.67081260880120
011.30.800/011.40.800 012.30.800/012.40.800922678100220
011.30.900/011.40.900 012.30.900/012.40.9001022778100240
011.30.1000/011.40.1000 012.30.1000/012.40.10001122878100270
011.30.1120/011.40.1120 012.30.1120/012.40.11201242998100300
011.35.1250/011.45.1250 012.35.1250/012.45.125013901110110420
011.35.1400/011.45.1400 012.35.1400/012.45.140015401260110480
011.35.1600/011.45.1600 012.35.1600/012.45.160017401460110550
011.35.1800/011.45.1800 012.35.1800/012.45.180019401660110610
011.40.2000/011.60.2000 012.40.2000/012.60.2000217818251441100
011.40.2240/011.60.2240 012.40.2240/012.60.2240241820651441250
011.40.2500/011.60.2500 012.40.2500/012.60.2500267823251441400
011.40.2800/011.60.2800 012.40.2800/012.60.2800297826251441600
011.50.3150/011.75.3150 012.50.3150/012.75.3150337629221742800





High precision slewing ring bearing with outer gear 011.25.630



if you need, please contact me freely.
