ANSI Standard Pitch 19.05 Transmission Precision Roller Chains 12A-1 60-1

ANSI Standard Pitch 19.05 Transmission Precision Roller Chains 12A-1 60-1 thumbnail-1
ANSI Standard Pitch 19.05 Transmission Precision Roller Chains 12A-1 60-1 photo-1
US$ 0.1 - 100 MOQ: 10 Meters
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Type:
Roller Chain
Material:
Alloy
Contact Supplier Request Quote Chat Now
Changsha Terry Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai / Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Type Roller Chain
Material Alloy
Tensile Strength high
Place of Origin Zhejiang, China
Brand Name NTL
Model Number 12A-1

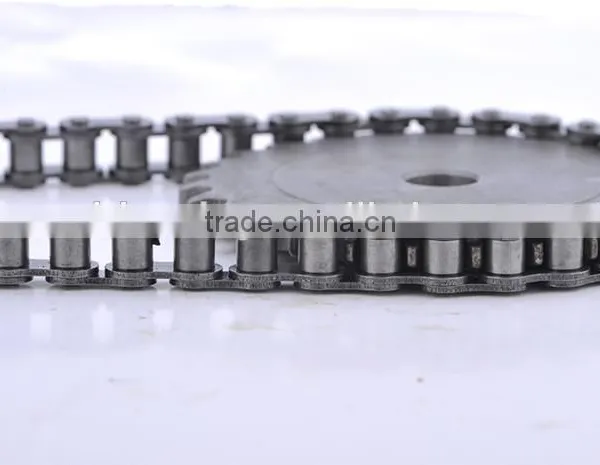

ANSI standard pitch 19.05 transmission precision roller chains 12A-1 60-1







Introduction



  • Solid roller and solid bush
  • End-softened pins make it easy to disassemble this chain
  • Look for the round or "spin" riveting for the sign of a Renold chain
  • The high waist plate shape with a high waist gives better stress distribution
  • Engineered for the best fatigue resistance you can get
  • Delivers wear resistance that surpasses anything produced elsewhere
  • Components manufactured to the highest specifications for unbeatable accuracy
  • For longer working life choose Renold roller chain





Feature



  • Solid roller, solid bush
  • End-softened pins for easy disassembly
  • High waist plate shape
  • Unrivalled component accuracy
  • Reliability, Reputation and Performance

Advantage

  • Unbeatable wear and fatigue resistance
  • Longer working life
  • Reduced bedding-in times
  • Better resistance to shock loadings
Our Services
Main Products
1 Roller chain:A series,Bseries,Heavy duty series
2 Conveyor chain:Double pitch chains,chain with attachments
3 Motorcycle Chains: 25H (04CH), 415, 415H, 420, 420H, 428, 428H, 520, 520H, 530, 530H
4 O-Ring and X-Ring Motorcycle chains: 428SO,520SO,525SO,530SO
5 Silent chains: SC3,SC4,SC5,SC6,SC8,SC10
6 PIV chains: A0,A1,A3,A4,A5,A6
7 Leaf chains: LH series
8 Nickel-plated chains: 25NP,35NP,41NP,40NP,50NP
9 Coupling chains
10 Other chain : RO series , RF series,M series ,W series ,ST series,PT series ,MR series ,Super series ,HP series ,SS series etc
11 Greases
12 Sprocket
13 Rigging & Hook
14 Transport Mechanics equipment
15 conveyor belt
16 OEM , ODM provided







Contact





Changsha Terry Machinery Co.,Ltd



Attn: emily



E-mail: emily at



Skype: emilydongliu







Datasheet







ISO
KIN/ISO
Chain No.		 ANSI
Chain No.		 Pitch Roller Width between
inner plates		 Pin Dia. Pin Length Lnner plate
depth		 Plate
thickness		 Ultimate
tensile strength		 Average
tensile strength		 weight/meter
P
(mm)		 d1
max(mm)		 b1
min(mm)		 d2
max(mm)		 L
max(mm)		 Lc
max(mm)		 h2
max(mm)		 T
max(mm)		 Q
min(kN/LB)		 Q0
kN		 q
kg/m
08A-1 40 12.7 7.95 7.85 3.96 16.6 17.8 12 1.5 14.10/3205 17.5 0.62
10A-1 50 15.875 10.16 9.4 5.08 20.7 22.2 15.09 2.03 22.20/5045 29.4 1.02
12A-1 60 19.05 11.91 12.57 5.94 25.9 27.7 18 2.42 31.80/7227 41.5 1.5
16A-1 80 25.4 15.88 15.75 7.92 32.7 35 24 3.25 59.70/12886 69.4 2.6
20A-1 100 31.75 19.05 18.9 9.53 40.4 44.7 30 4 88.50/20114 109.2 3.91













                ANSI standard pitch 19.05 transmission precision roller chains 12A-1 60-1



                ANSI standard pitch 19.05 transmission precision roller chains 12A-1 60-1



                ANSI standard pitch 19.05 transmission precision roller chains 12A-1 60-1



                ANSI standard pitch 19.05 transmission precision roller chains 12A-1 60-1









                                         Welcome to enquire for more details!
