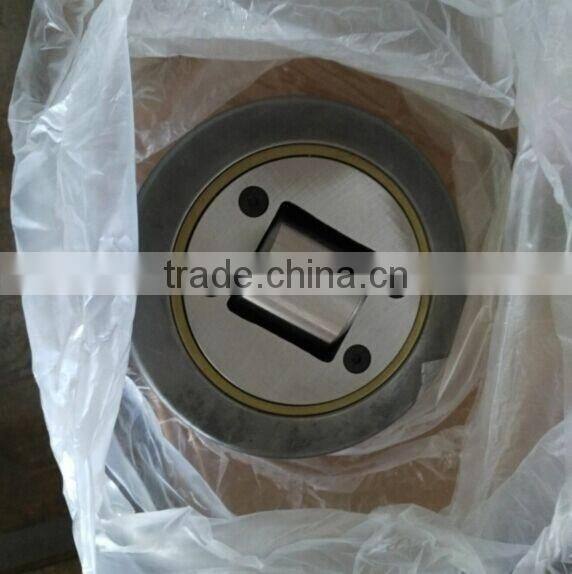

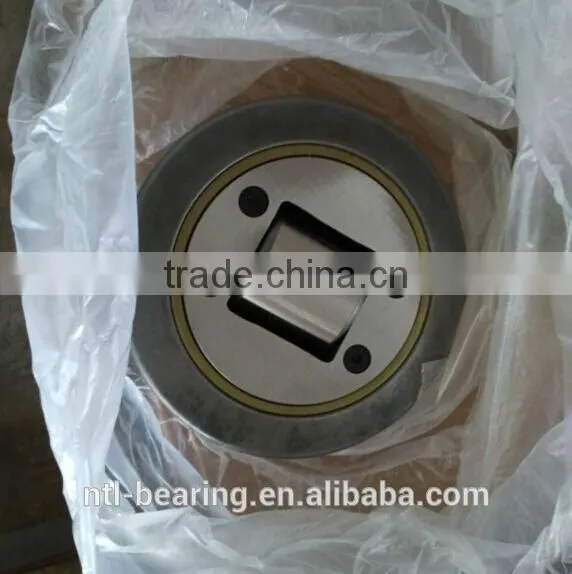

winkel series Axial bearing adjustable type 4.075

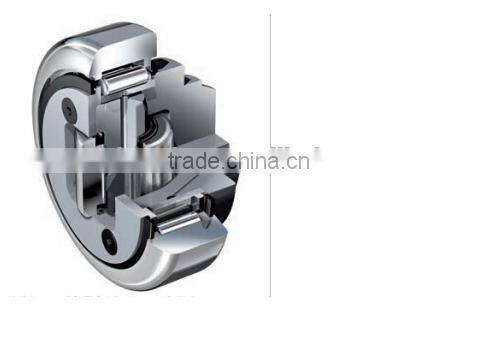

Composite roller bearing, the installation of the main roller is made up of two different directions, side of roller and shaft head, to reduce the space, reduce the manufacturing cost. Bearing radial and axial direction of the bearing capacity is big, all the parts can be replaced. Combination of adjustable roller bearings can by adjusting the eccentric outside hexagonal or eccentric valve to adjust the core shaft position and then achieve the goal of adjusting side roller shaft to the size. Composite roller bearing is mainly used for forklift, stacker, metallurgical industry, container front fork, crane large hoisting equipment and materials such as lifting equipment
Winkel series combine roller bearing model :
Model no. |
D mm. |
T mm. |
d -0.05 mm. |
H mm. |
h mm. |
B mm. |
A mm. |
S mm. |
r mm. |
C KN |
COKN |
COAKN |
r/pm max. |
Weight kg |
4.053 |
52,5 |
40 |
30 |
33,0 |
27,0 |
17 |
5,0 |
15 |
2 |
24,0 |
32,0 |
7 |
800 |
0,46 |
4.054 |
62,5 |
42 |
30 |
37,5 |
30,5 |
20 |
2,5 |
20 |
3 |
31,0 |
35,5 |
11 |
900 |
0,53 |
4.055 |
70,1 |
48 |
35 |
44,0 |
36,0 |
23 |
2,5 |
22 |
4 |
45,5 |
51,0 |
14 |
900 |
0,80 |
4.056 |
77,7 |
54 |
40 |
48,0 |
36,5 |
23 |
3,0 |
26 |
4 |
48,0 |
56,8 |
18 |
800 |
1,00 |
4.057 |
77,7 |
53 |
40 |
40,0 |
29,0 |
23 |
3,0 |
26 |
4 |
48,0 |
56,8 |
18 |
800 |
0,87 |
4.058 |
88,4 |
59 |
45 |
57,0 |
44,0 |
30 |
3,5 |
26 |
3 |
68,0 |
72,0 |
23 |
750 |
1,62 |
4.059 |
101,2 |
67 |
50 |
46,0 |
33,0 |
28 |
3,0 |
30 |
3 |
73,0 |
82,0 |
27 |
700 |
1,74 |
4.060 |
107,7 |
71 |
55 |
54,0 |
39,0 |
31 |
3,0 |
34 |
5 |
81,0 |
95,0 |
36 |
650 |
2,27 |
if you are interesting , welcome to inquiry !
