Wholesale Stainless Steel Roller Chain 28A-1,32A-1,36A-1,40A-1,48A-1
US$ 1 - 100
MOQ: 10 Meters
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Type:
Roller Chain
Material:
Other, 40Mn
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai / Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
32A-1 Standard Short Pitch Precision 304 Stainless Steel Link Roller ChainUS$ 1 - 100MOQ: 10 Meters -
Agriculture Machine Accessories A Series Roller Chain 28A-1US$ 1 - 100MOQ: 10 Meters
-
24A-1 A Series Industrial Link Chain C45 Drive Sprocket ManufacturerUS$ 1 - 100MOQ: 10 Meters
-
China Made Ansi Standard a Series Carbon Steel Material Industry Transmission Roller Chain 16a-1US$ 1 - 100MOQ: 10 Meters
-
ANSI Standard Pitch 19.05 Transmission Precision Roller Chains 12A-1 60-1US$ 0.1 - 100MOQ: 10 Meters
Standard or Nonstandard
Standard
Type
Roller Chain
Material
Other, 40Mn
Tensile Strength
high
Place of Origin
Zhejiang, China
Brand Name
NTL
Model Number
36A-1

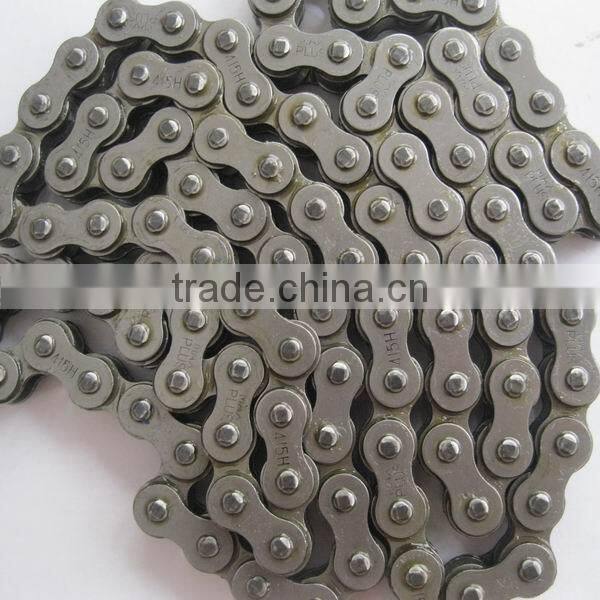

Wholesale Stainless steel roller chain 28A-1,32A-1,36A-1,40A-1,48A-1
Introduction
- Solid roller and solid bush
- End-softened pins make it easy to disassemble this chain
- Look for the round or "spin" riveting for the sign of a Renold chain
- The high waist plate shape with a high waist gives better stress distribution
- Engineered for the best fatigue resistance you can get
- Delivers wear resistance that surpasses anything produced elsewhere
- Components manufactured to the highest specifications for unbeatable accuracy
- For longer working life choose Renold roller chain
Feature
- Solid roller, solid bush
- End-softened pins for easy disassembly
- High waist plate shape
- Unrivalled component accuracy
- Reliability, Reputation and Performance
Advantage
- Unbeatable wear and fatigue resistance
- Longer working life
- Reduced bedding-in times
- Better resistance to shock loadings
Datasheet

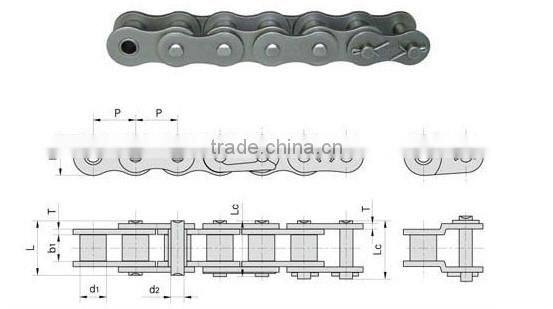

| DIN ISO Chain No# | ANSI Chain No# | Pitch | Roller Dia | Width between inner plates | Pin Dia | Pin Length | Inner Plate | Plate thickness | Ultimate Tensile strength | Average tensile strength | Weight/m | |
| P | D1 max | B1 min | D2 nax | L max | Lc max | H2 max | Tmax | Q min | Q0 | |||
| mm | mm | mm | mm | mm | mm | mm | mm | KN | KN | KG/M | ||
| 04C-1 | *25 | 6.350 | 3.30 | 3.18 | 2.31 | 7.9 | 8.4 | 6.00 | 0.80 | 3.50 | 4.6 | 0.15 |
| 06C-1 | *35 | 9.525 | 5.08 | 4.77 | 3.58 | 12.4 | 13.2 | 9.00 | 1.30 | 7.90 | 10.8 | 0.33 |
| 08A-1 | 40 | 12.70 | 7.95 | 7.85 | 3.96 | 16.6 | 17.8 | 12.0 | 1.50 | 14.10 | 17.5 | 0.62 |
| 10A-1 | 50 | 15.875 | 10.16 | 9.40 | 5.08 | 20.7 | 22.2 | 15.09 | 2.03 | 22.20 | 29.4 | 1.02 |
| 12A-1 | 60 | 19.05 | 11.91 | 12.57 | 5.94 | 25.9 | 27.7 | 18.00 | 2.42 | 31.80 | 41.5 | 1.50 |
| 16A-1 | 80 | 25.4 | 15.88 | 15.75 | 7.92 | 32.7 | 35.0 | 24.00 | 3.25 | 55.60 | 69.4 | 2.60 |
| 20A-1 | 100 | 31.75 | 19.05 | 18.9 | 9.53 | 40.4 | 44.7 | 30.00 | 4.00 | 88.50 | 109.2 | 3.91 |
| 24A-1 | 120 | 38.1 | 22.23 | 25.22 | 11.10 | 50.3 | 54.3 | 35.70 | 4.80 | 127.0 | 156.3 | 5.62 |
| 28A-1 | 140 | 44.45 | 25.4 | 25.22 | 12.70 | 54.4 | 59.0 | 41.00 | 5.60 | 172.4 | 212.0 | 7.50 |
| 32A-1 | 160 | 50.8 | 25.58 | 31.55 | 14.27 | 64.8 | 69.6 | 47.80 | 6.40 | 226.8 | 278.9 | 10.10 |
| 36A-1 | 180 | 57.15 | 35.71 | 35.48 | 17.46 | 72.8 | 78.6 | 53.60 | 7.20 | 280.2 | 341.8 | 13.45 |
| 40A-1 | 200 | 63.5 | 39.68 | 37.85 | 19.85 | 80.3 | 87.2 | 60.00 | 8.00 | 353.8 | 431.6 | 16.15 |
| 48A-1 | 240 | 76.2 | 47.63 | 47.35 | 23.81 | 95.5 | 103 | 72.39 | 9.50 | 510.3 | 622.5 | 23.2 |
